Global Leading Diamond Tool Manufacturer.
Johnsontools | Cost-effective Cutting Disc Diamond Factory Direct Supply

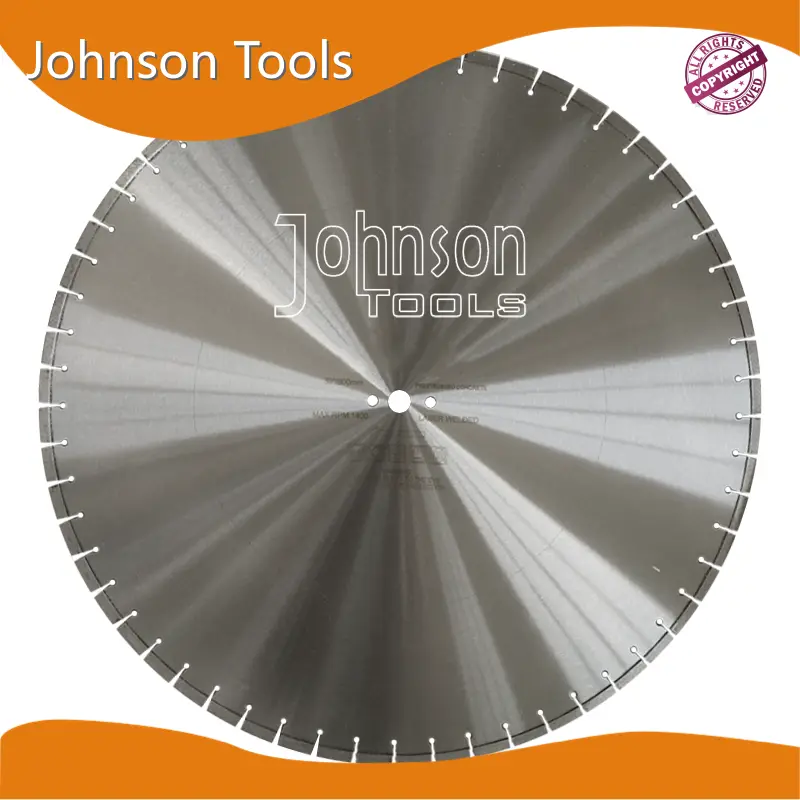

Product details of the cutting disc diamond
Product Description
johnsontools's designers have begun to dare to make breakthroughs in the design of cutting disc diamond. The QC team guarantees the quality of the product under the supervision of technicians. With many excellent characteristics and competitive price, the product has won good reputaiton among its customers all over the world.
PRODUCT ADVANTAGES
Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries.
PRODUCT parameter
| Inch | Diameter | Teeth length | Teeth thickness | Teeth height | Teeth number |
| (mm) | (mm) | (mm) | (mm) | (nos) | |
| 24" | 600 | 40 | 5 | 12/15 | 42 |
| 28" | 700 | 40 | 6.5 | 12/15 | 50 |
| 32" | 800 | 40 | 6.5 | 12/15 | 57 |
| 36" | 900 | 40 | 6.5 | 12/15 | 64 |
| 40" | 1000 | 40 | 7 | 12/15 | 70 |
| 44" | 1100 | 40 | 7.5 | 12/15 | 74 |
| 48" | 1200 | 40 | 8 | 12/15 | 80 |
| 52" | 1300 | 40 | 8 | 12/15 | 88 |
| 56" | 1400 | 40 | 9 | 12/15 | 95 |
| 60" | 1500 | 40 | 9 | 12/15 | 100 |
product usage
STEEL DISCS
Steel discs of Laser welded Pre-stressed concrete saw blade, we used from China's Largest Steel Discs Factory. Keep more toughness and stability. Cooperated with them +20years. Pass ISO9002 Certificate.
Materials (carbon content): 30CrMo(0.26-0.34)
Type: Normal type, Silent type.
Product testing parameters before leaving the factory:
Tolerance of Diameter: +0.5
Tolerance of Thickness: +0.07
Tolerance of Center hole: +21μm /H8/H7
HRC, Flat, Side run out, there are strict GB testing standards.
Some Information which you concern
Main Fixed cutting machine: Eelematic, Levanto, Ultraspan, Nord Impant, Xtec, Echo, Tecnospan, Weiler, etc.
Cutting Application: Hollowcore PSC, beams and reailway sleepers.
HS code of precast concrete saw blade: 8202391000.
900mm precast concrete saw blade, our standard grade can cut 600hours lifespan.
Logo can laser mark or screen painting on the blade, FREE.
Widely selling to South Africa, Thailand, Singapore, Spain, Mongolia，Kazakhstan， etc.
