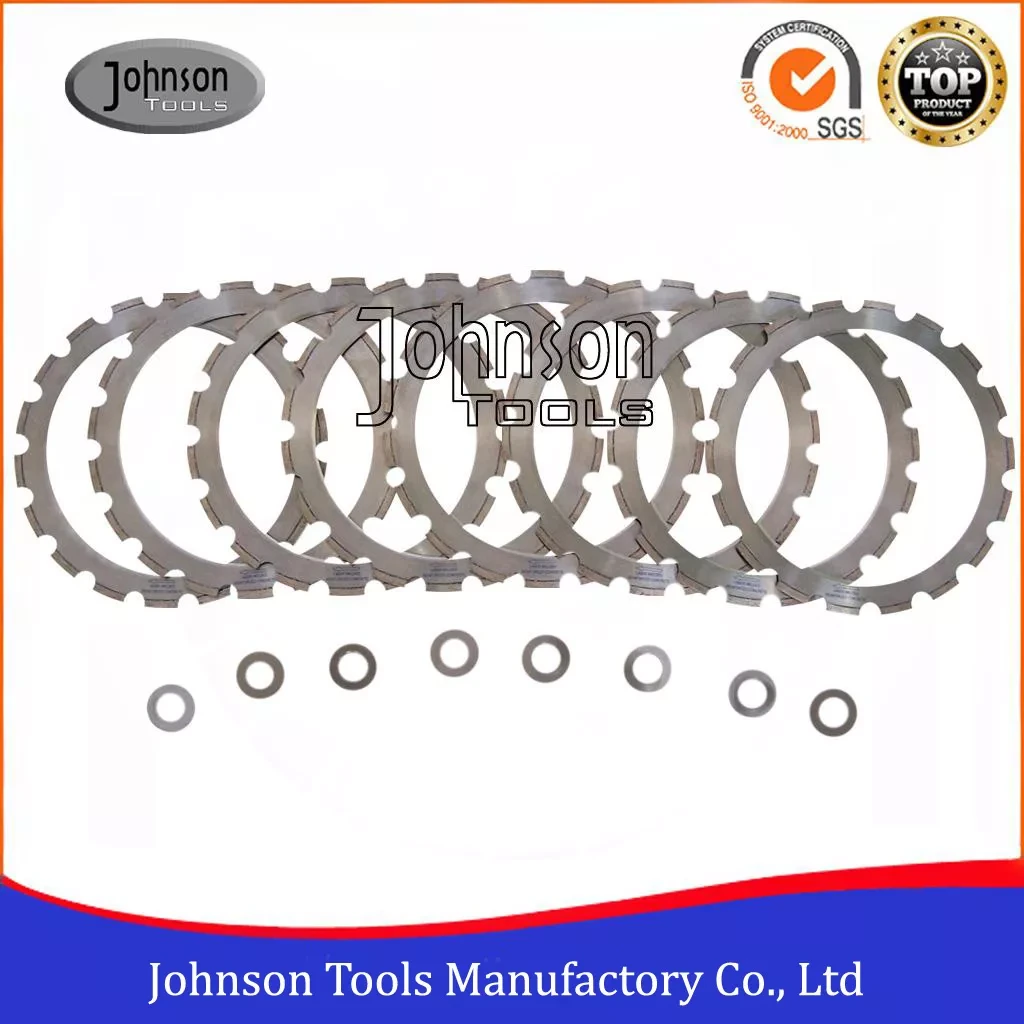

14 inch Diamond Ring Saw Blade

Special design for cutting concrete, cured concrete with light/medium reinforced etc.
Availability:
Quantity:

350mm Ring Diamond Concrete Saw Blades for Cutting Concrete, Reinforced Concrete



Feature:

1. Apply to Husqvarna or partner K3600 Hydraulic cutting machine.

2. Cutting depth with 260mm.

3. With good driving wheels.

4. Laser welding technology could be dry cutting, and wet cutting better.

5. Ring sawing provides portable, quick cutting with minimal over-cuts, accessibility at construction and demolition sites.

6. Widely used in cutting concrete pipe, creating openings for electrical, plumbing or other needs in floors, concrete walls, ceilings, eliminating overcuts.


Spec. of ring saw blades:

1. Outer diameter: 14" / 350mm

2. Segment spec.: 40x4.1x8/10mmx18nos

3. Max cutting depth is 260mm.



Packing:

1. 10pcs ring saw blades are packed in one ctn., Carton size:38x38x15cm.

2. Net weight:  1.2kg per piece.

3. Gross weight: 15kg per carton. 300pcs per one pallet.



Data:

Item No.

Diameter
Inch

Segment number
NOS

Segment height
MM

Segment thickness
MM

Inner hole

LCO-T01-350

14”

18

810

3

288
