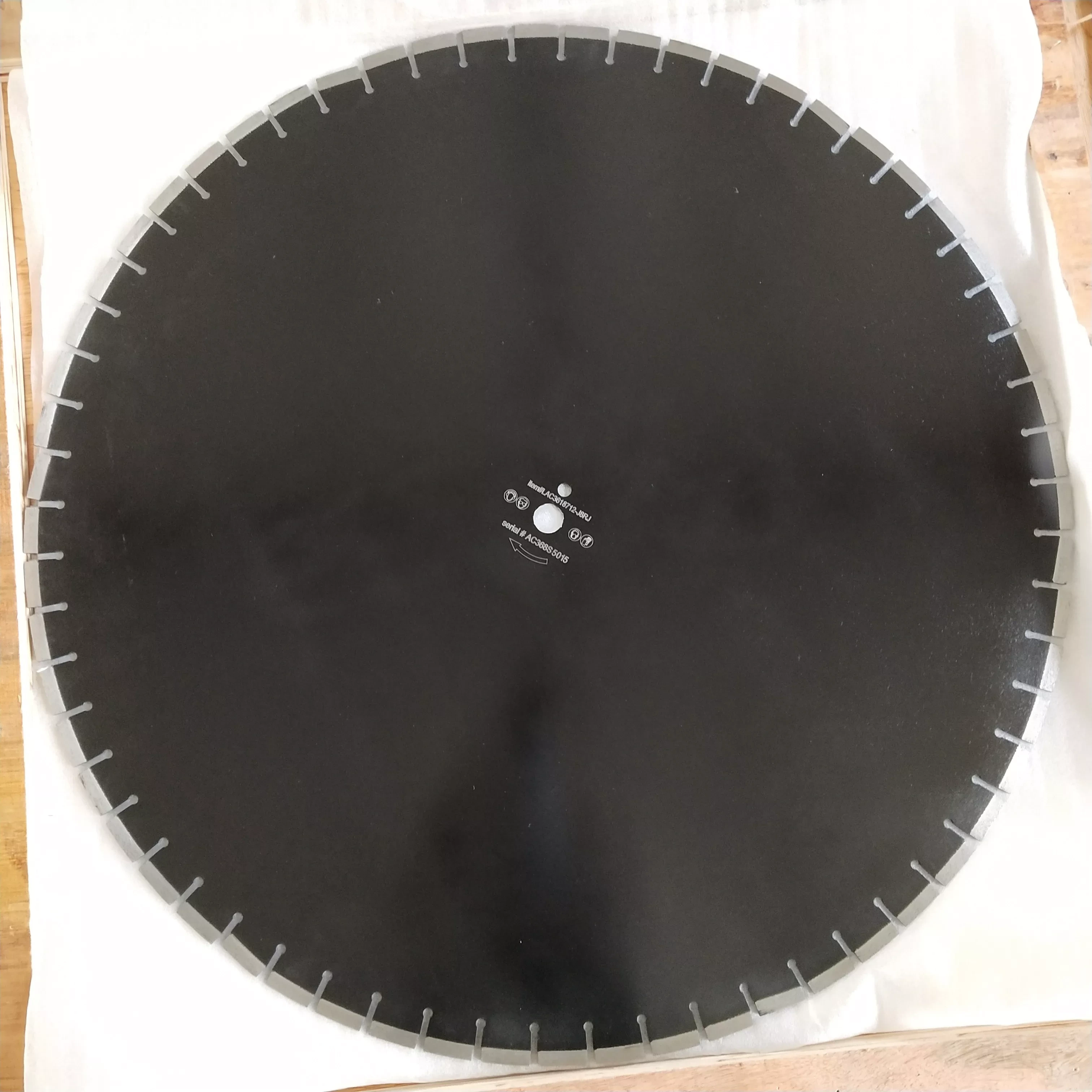

36" 900mm Diamond Saw Blade for Asphalt Over Concrete Cutting Tools with protection segment
36" 900mm Diamond Saw Blade for Asphalt Over Concrete Cutting Tools
Laser welded Diamond Saw Blade used for Asphalt and Abrasives material cutting with high efficiency.
Ladder shape protection segments prevent wear and tear of the steel core by abrasive materials, and suitable for road saws from 10hp to 95hp.
Feature
1. Processing technology: Laser welded.
2. Different segment heights and inner hole sizes could be adjustable upon request.
3. Protection segment type: L/H5, L/H3, N/H5, N/H3.
4. Strict quality control and management system.
Spec.
1. Diameter: 36" 900mm
2. Segment length: 40mm
3. Segment thickness: 4.8/5mm
4. Segment height: 10/12/15mm
5. Inner hole:22.23mm, 25.4mm, 50mm, 60mm, or as your demand.
Inch | Diameter (mm) | Segment length (mm) | Segment thickness (mm) | Segment height (mm) | Segment number (nos) |
12" | 300 | 40 | 3.0 | 10/12/15 | 18/20 |
14" | 350 | 40 | 3.2 | 10/12/15 | 21/24 |
16" | 400 | 40 | 3.4 | 10/12/15 | 24/28 |
18" | 450 | 40 | 3.6 | 10/12/15 | 26/32 |
20" | 500 | 40 | 4.0 | 10/12/15 | 30/36 |
24" | 600 | 40 | 4.4 | 10/12/15 | 36/42 |
The drawing of protection segment
Tag: Diamnd blade concrete Concrete blade circular saw Gritstone circular saw blade 7 inch diamond blade
