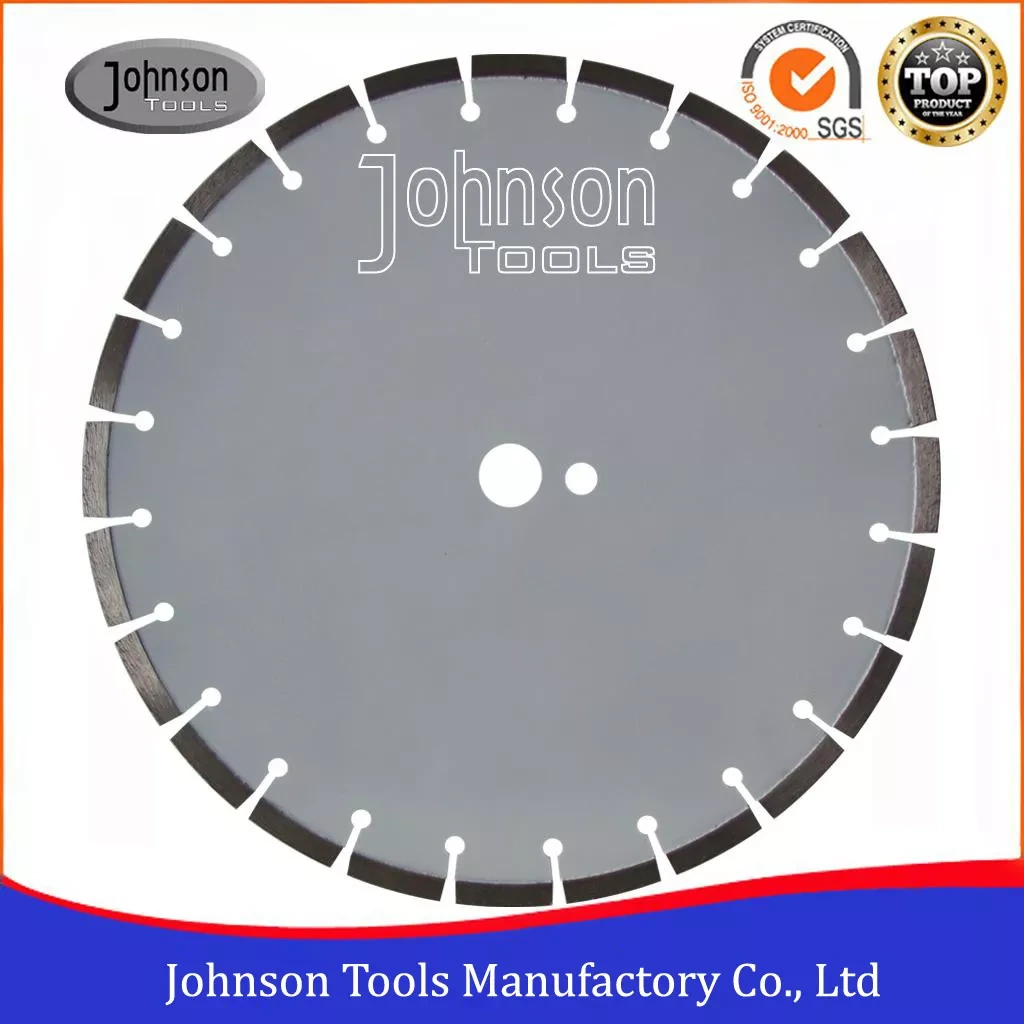

China Manufacturer Reinforced Concrete Cutting Tools 14" Diamond Concrete Saw Blades for Cutting Reinforced Concrete
-
Johnson Tools
China Manufacturer Reinforced Concrete Cutting Tools 14" Diamond Concrete Saw Blades for Cutting Reinforced Concrete
350mm diamond concrete saw blades is mainly used for the situations which contained reinforced concrete, like cutting new and old road expansion joints and bridge parapet ripper dressing.
Design different segment formula for different power machines, different hardness, different wear resistance, etc. Apply to different construction materials cutting.
Well exported to Australia and Asia, Europe, America, Africa, market.
Dimension
1. Diameter:350mm
2. Segment thickness:3.2mm
3. Segment height: 10mm, 12mm, 15mm.
4. Inner hole: 22.23mm, 25.4mm, 50mm or as your request.
Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
14" | 350 | 40 | 3.2 | 10 | 24 |
14" | 350 | 40 | 3.2 | 12 | 24 |
14" | 350 | 40 | 3.2 | 15 | 24 |
Other size Concrete Saw Blade we could do as following
Inch | Diameter | Teeth length | Teeth thickness | Teeth height | Teeth number |
4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
28" | 700 | 40 | 5.0 | 10/12/15 | 40 |
30" | 750 | 40 | 5.0 | 10/12/15 | 46 |
Feature
1) Fast speed, high efficiency for cutting reinforced concrete structure.
2) The kerf is very smooth and flat, surface is very pretty.
3) Concrete cutting is no vibration, have no influence for previous structure.
4) Reinforced concrete cutting is no dust, low noise, it is a good environment.
5) Well precision construction.
Packing
1. 10pcs packed in one carton, carton size:36x36x15cm.
2. Net weight: 1.8-2.0kg per piece.
3. Gross weight is around 20-22kg per carton.
Our technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
Cautions
First, To keep the reinforced concrete cutting in the stable construction environment, so should inspect the machine fully firstly to ensure that protective equipments are safe and effective before using, the diamond saw blade selected is installed correctly to meet the requirements and so on. When the machine starts, to check and make sure the diamond blade running direction is correct, then could work when everything is ok.
When the workpiece happening beat and abnormal sound should immediately stop working, after inspecting and troubleshooting could go on working. Reinforced concrete cutting non-check operation and maintenance of the components.
Chips in the kerf of bench saws and saw should be promptly removed using special tools, don’t be picked and wiped by hand. After the operation, should clean the machine body and wipe the blade, the remaining water discharge tank, cable recovered and stored in a dry, well-ventilated place. Then the long-stalled machinery, prior to use in addition to the necessary maintenance of the mechanical parts, the motor insulation resistance must be measured before using.
Clients feedback: "We are already using your discs and we are very satisfied".
Tag: 14 inch diamond masonry blade Granite cutting blade Diamond saw blade for stone Gang saw segments
