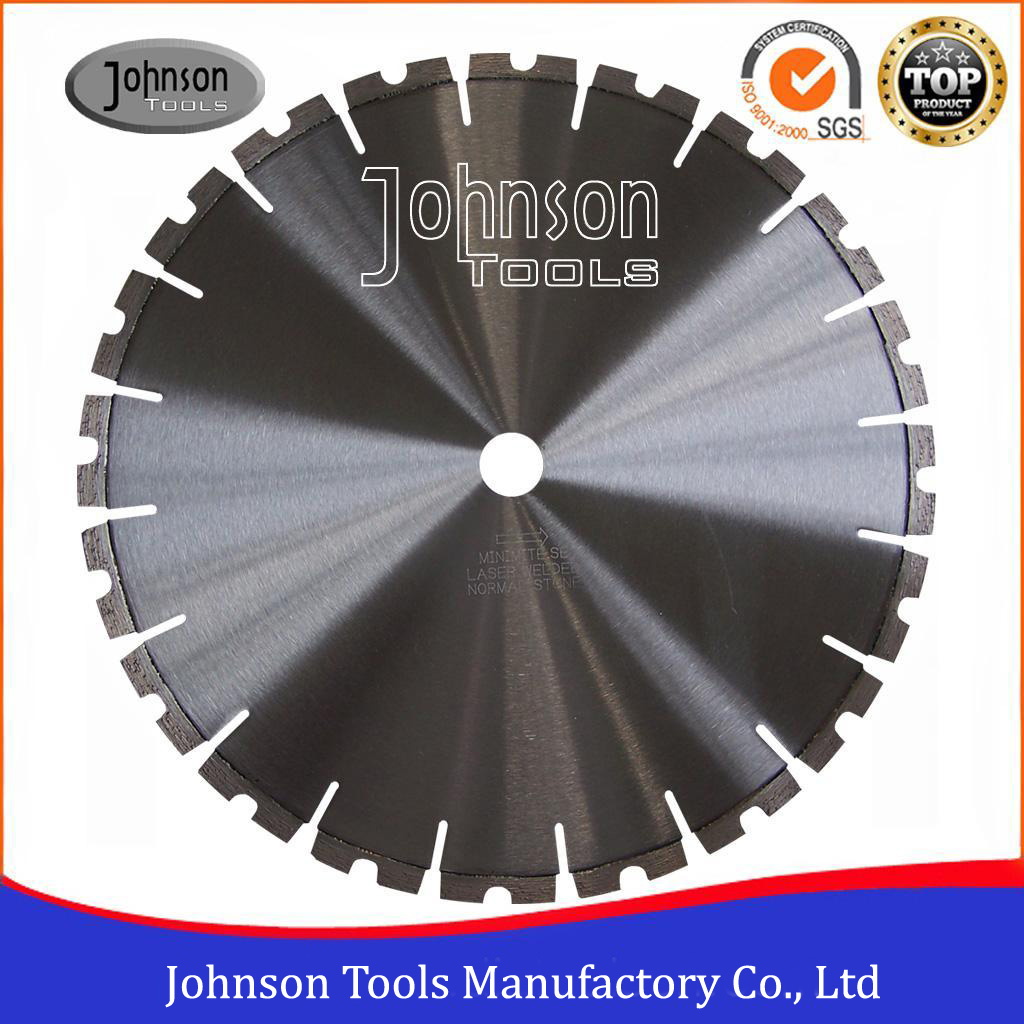

300-800mm Laser Welded Single U Segmented Universal Blades

Quantity:



12”-32” Laser Welded Single U Segmented universal blades



Single U segmented universal saw blades are still exported to European market, for cutting various normal stone. Regular exported diameter is 300mm,350mm, 400mm, 415mm, 600mm, 800mm. As a direct manufacturer, we could provide any general purpose saw blade as your request.



Feature

1. 100% Laser welding technology.

2. Delivery time: around 15-40days.

3. Segment type: Single U segment.

4. Application: for cutting normal stone, such as marble, granite, limestone, sandstone etc.



Spec.

1. Diameter:300-800mm

2. Segment thickness:3.0-4.8mm

3. Segment height:10mm

4. inner hole:22.23mm, 25.4-22.23mm.



Inch

Diameter

(mm)

Teeth length

(mm)

Teeth thickness

(mm)

Teeth height

(mm)

Teeth number

(nos)

12"

300

40

3.0

10

20

14"

350

40

3.2

10

24

16"

400

40

3.4

10

28

16.5”

415

40

3.4

10

28

24"

600

40

4.2

10

42

32”

800

40

4.8

10

46



Packing &Shipment
1. 300-600mm, inner packing by white box, outer packing by carton, more than 600mm, outer packing by plywood.
2. Express, air shipment, sea shipment are avaiable, upon detail gross weight.
