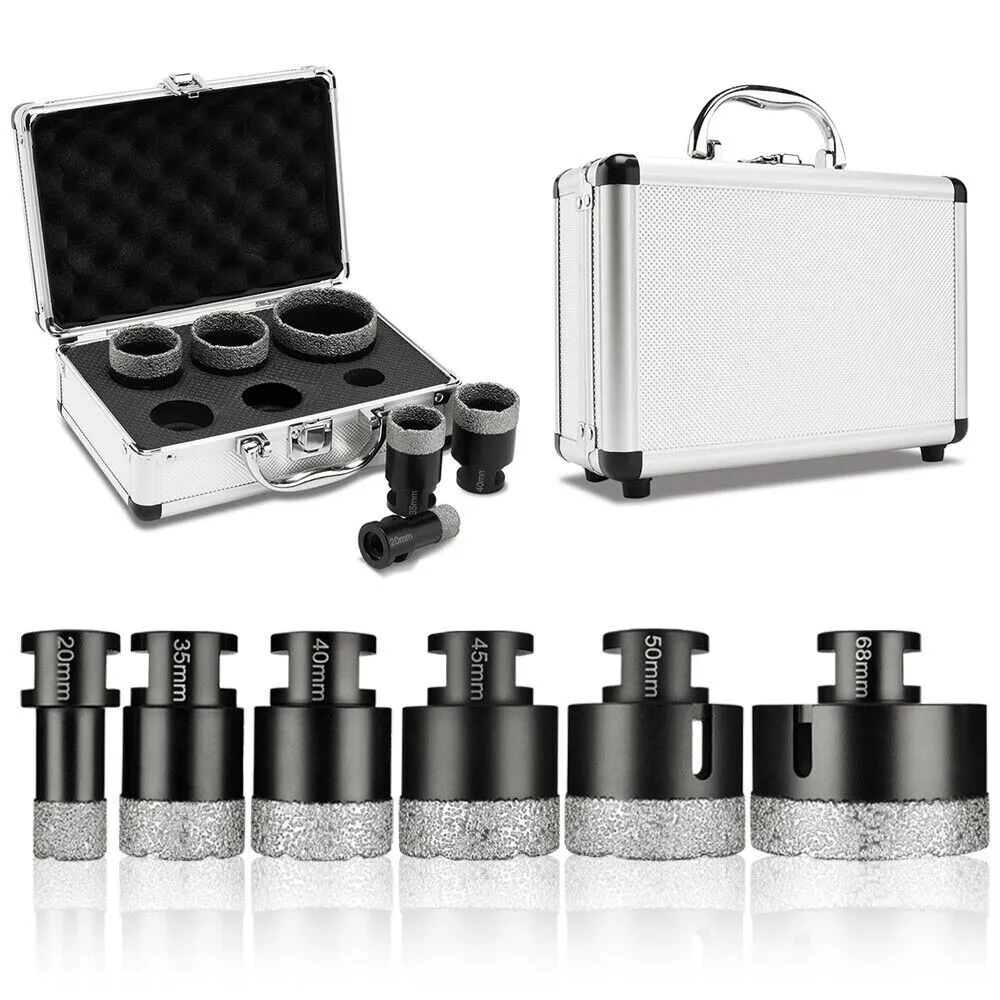

Johnson Tools 20mm, 35mm, 40mm,45mm, 50mm, 68mm M14 Vacuum Brazed Dry Diamond Core Drill Bits Set for Tiles
Brazing refers to a welding method in which the brazing material and the welding piece which are lower than the melting point of the welding piece are heated to the melting temperature of the brazing material at the same time, and the gap of the solid workpiece is filled with the liquid brazing material to make the metal connection. Brazing drills use this process to attach diamond particles to the substrate to improve the performance of the drill.
Product name
Diamond Core Drill Bit Sets For Tile
Diameter
20/30/40/45/50/68MM
Features
1. Vacuum Brazed Diamond Core Bits are very aggressive and ideal for drilling ceramic and porcelain tiles along with granite, marble, and stone with super high precision while leaving smooth edges with minimal chipping.
2. Vacuum-brazed technology is superior to electroplating in that the bits last much longer than electro-plated diamond bits.
3. They can typically drill more than 30 holes although life is dependent on the type of material.
4. You can expect each bit to last dozens of holes drilling marble and similar stones.
PRODUCT ADVANTAGES
Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries.
PRODUCT parameter
| Vacuum Brazed Tiles Hole Saw Dry Diamond Drills Core Bit for Tile | |||
| Out Diameter | Total length | Teeth Height | Thread |
| 20mm | 60mm | 15mm | M14 |
| 35mm | 60mm | 15mm | M14/ |
| 40mm | 60mm | 15mm | M14 |
| 45mm | 60mm | 15mm | M14 |
| 50mm | 60mm | 15mm | M14 |
| 68mm | 60mm | 15mm | M14 |
| Fearues | * Vacuum Brazed technology, the diamond particles are firmly welded to the base body, diamond never fall off | ||
| * Dry or wet use, use with water is better | |||
| * Less Chipping, minimizing breakage, less heat generation, better finish quality | |||
| * Fast and Smooth drilling, long lifetime | |||
| * Application for drilling and reaming tile ceramic ,stone masonry, brick, etc. | |||
product usage
Dry/Wet Cutting.
This hole saw bit can be cut arbitrarily in wet or dry to meet various user environments. A little water will make it smoother.
The diamond hole saw drill bit set can be used both dry and wet, meet your various needs, recommended adding some water to prolong the service life.
This hole saw drill bit set adopts 5/8"-11 female thread, suits for angle grinder.
