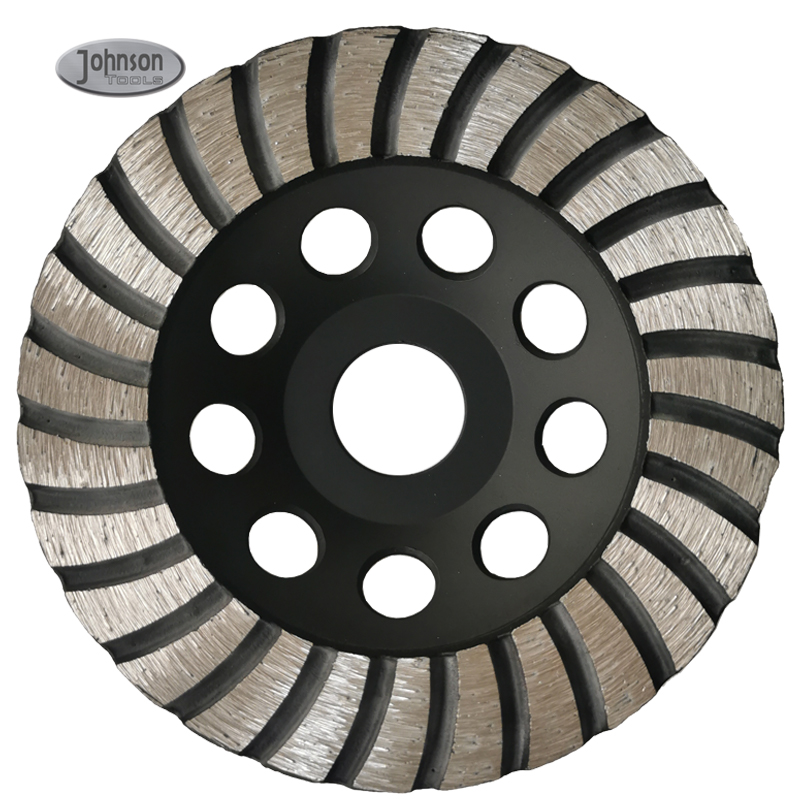

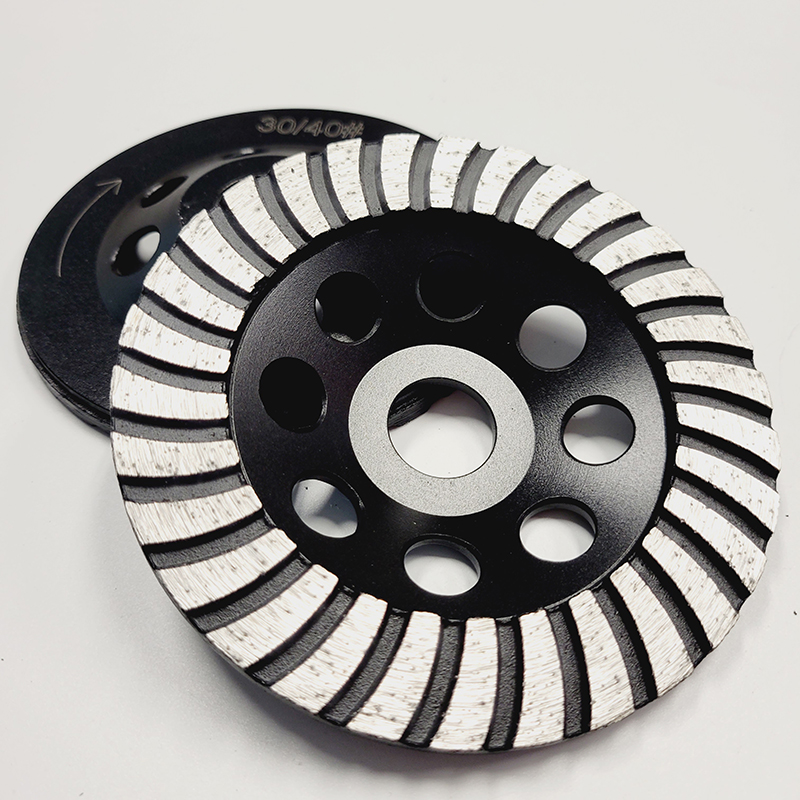

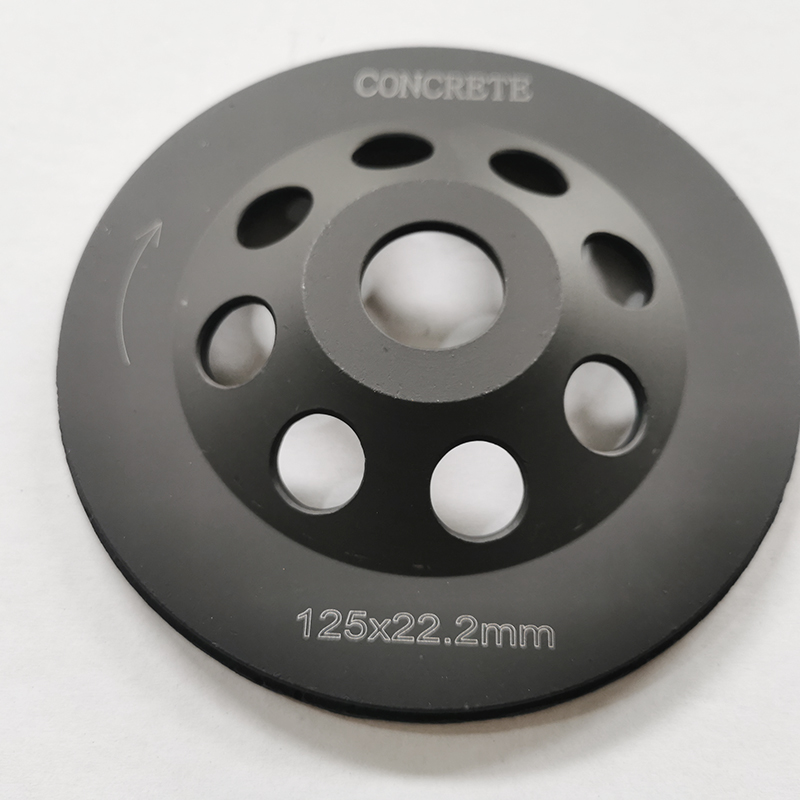

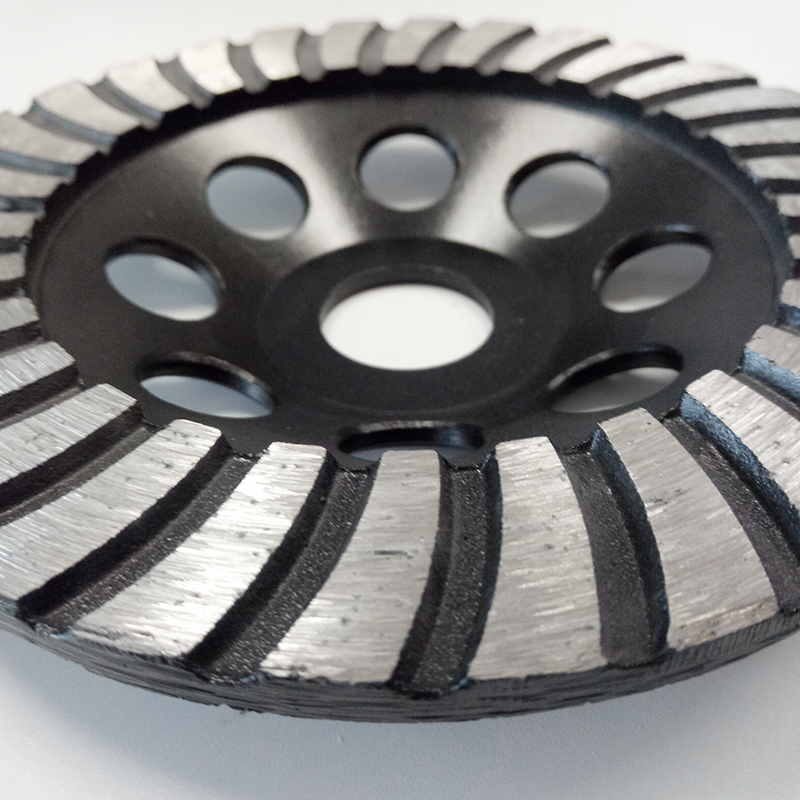

Johnson Tools 5" Turbo Diamond Grinding Tools Cup Wheels for Concrete

Description:

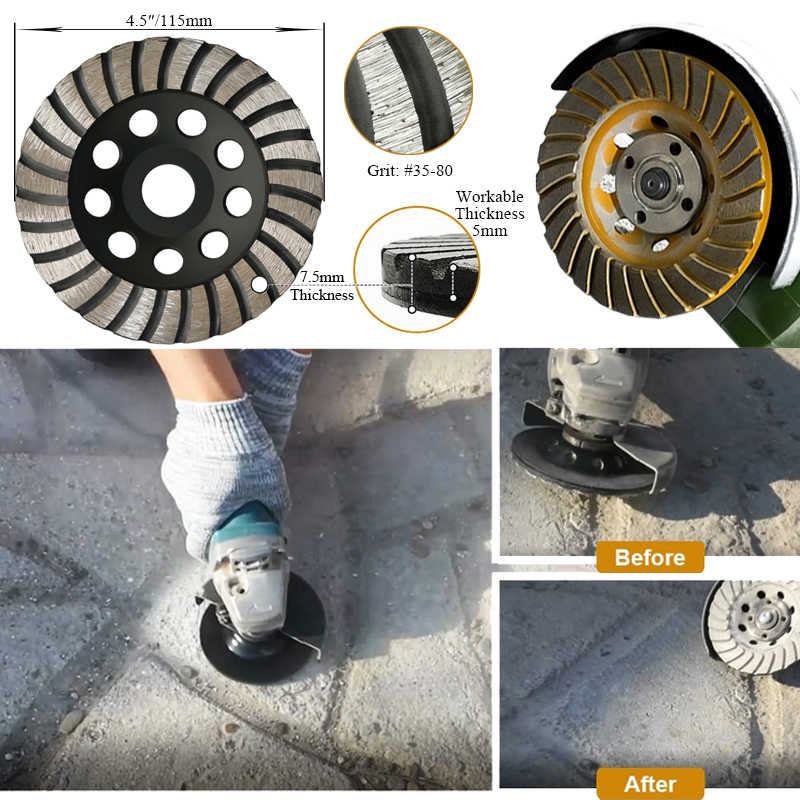

Turbo diamond cup wheels are commonly used for concrete grinding, coating removal, surface leveling, and preparation for concrete polishing or resurfacing.

Specifications:

Blade Diameter: 5" (125mm)

Arbor Size: 22.23mm, 5/8"-11, M14

Segment Thickness: 5mm

Grit size: #16/20, #30/40, #50/60, #60/80, etc

Bonding Agent：Metal Bond

Color: Customized

Purpose : For concrete floor, hard stone etc

Inquiry

Write a Review

Get In Touch With Us

PRODUCT ADVANTAGES

Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries.

Efficient Material Removal:

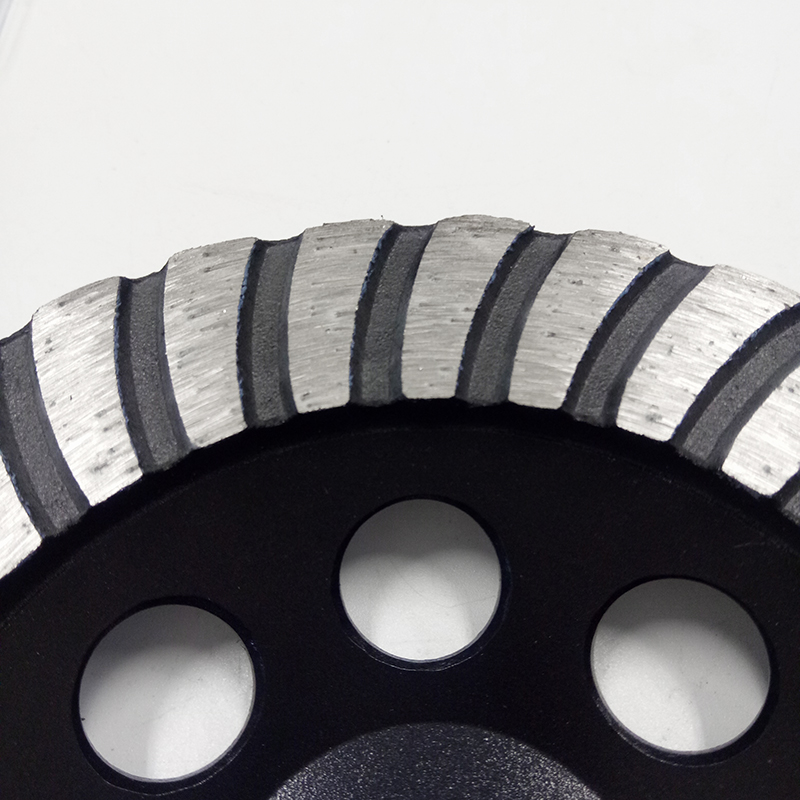

Turbo cup wheels feature a segmented or turbo-style rim design that allows for rapid and efficient material removal. This design enhances productivity and reduces the time required for grinding tasks.

Balanced Design:

Turbo cup wheels are engineered for precise balance, reducing vibration and ensuring smooth operation during grinding. This balance contributes to high production rates.

Aggressive Grinding:

These cup wheels are known for their aggressive grinding capabilities. They can tackle tough surface irregularities, coatings, adhesives, and concrete imperfections with ease.

Various sizes

Regular hot-selling sizes, from 4" to 9"， come with different hole diameters, including 22.23mm, M14, or 5/8"-11, to accommodate various grinder spindle sizes and threading types.

product Specification

Product Types	OD(inch)	Seg.type	Bore	Application
Diamond Grinding Cup Wheels	5" (125mm)	Turbo	22.23mm	Concrete, Granite etc

product usage

Even Wear:

Turbo cup wheels are constructed with segmented or turbo-style segments that wear evenly. This helps maintain a consistent grinding performance throughout the wheel's lifespan, preventing uneven wear patterns.

Wide Application:

Turbo cup wheels are versatile and suitable for a range of applications. They can be used on various concrete surfaces, including floors, walls, countertops, and more.

Q1: How do I choose the best 5-inch turbo diamond grinding cup wheel for concrete floor leveling?

A: Choosing the right wheel depends on your machine and the material. Our 5-inch (125mm) turbo diamond grinding tools are designed for high-efficiency surface leveling. With various arbor sizes (22.23mm, 5/8"-11, M14), they fit most standard angle grinders. The turbo row design provides more aggressive cutting than single or double row wheels, making it the best choice for removing high spots on uneven concrete floors.

Q2: Can I use this metal bond turbo cup wheel for removing thin-set and epoxy coatings?

A: Yes, absolutely. These metal bond turbo diamond cup wheels are excellent for coating removal, surface preparation, and resurfacing. The 5mm segment thickness and high-quality metal bond ensure that even tough materials like thin-set, mortar, or light epoxy coatings are stripped away quickly, leaving a clean surface ready for polishing or new overlays.

Q3: What grit size should I use for heavy-duty concrete grinding vs. fine surface preparation?

A: It depends on your project stage. For heavy-duty concrete grinding and material removal, we recommend a coarse #16/20 or #30/40 grit. If you are doing fine surface preparation for concrete polishing, a medium #50/60 or #60/80 grit is more suitable to minimize deep scratches. Our customized grit options allow you to achieve the exact profile needed for your specific job.

Q4: Is the Johnson Tools 5/8"-11 threaded diamond grinding wheel compatible with North American angle grinders?

A: Yes, we provide multiple connection standards to suit global markets. For customers in the USA and Canada, we offer the 5/8"-11 threaded diamond grinding wheels, which screw directly onto your grinder without needing extra nuts. For other regions, we provide M14 or 22.23mm (7/8") arbors, ensuring universal compatibility for professional contractors worldwide.

Q5: Can these turbo diamond tools be used for grinding hard stone and granite?

A: While their primary purpose is concrete, these turbo diamond grinding tools for hard stone are versatile enough to handle granite and masonry. The aggressive turbo segments work effectively on hard natural stone for edge shaping or surface smoothing. However, always ensure you are using the correct RPM to maintain the life of the 5mm thick diamond segments.

Q6: Does Johnson Tools offer OEM logo printing and customized packaging for Amazon or eBay sellers?

A: Yes, as a professional manufacturer and supplier, we specialize in supporting e-commerce partners. Our services include logo print, label services, and customized packaging for brands selling on Amazon, eBay, Shopify, and Walmart. We also provide photos without watermarks and fast delivery options to help you scale your diamond tool business quickly and professionally.
