40inch 1000mm Laser Welded Diamond Saw Blades for Hollow Core Concrete Beds Cutting
-
Johnsontools
Get In Touch With Us
40inch 1000mm Laser Welded Diamond Saw Blades for Hollow Core Concrete Beds Cutting

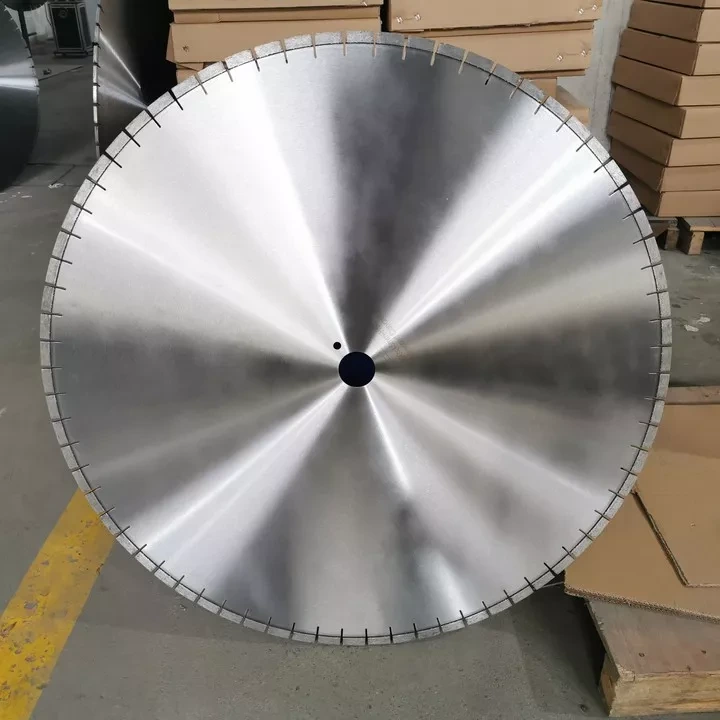

1000mm diamond blade with laser welded segments for cutting precast concrete, Hollow core concrete beds etc. With good sharpness and long cutting lifetime.
Fits to Prestressed Concrete Pile Machine—Bridge Crane, Prestressed concrete cutting machine.
Mainly exported to South africa, Bahrain, Vietnam, Egypt, UK, Thailand market.
Detail Size
1. Diameter:1000mm

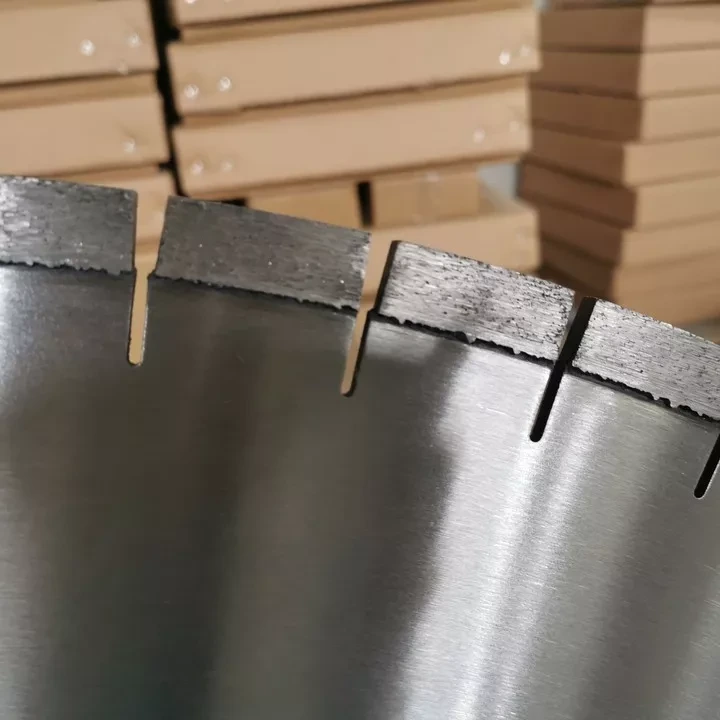

2. Segment thickness:4.8/5mm
3. Segment height:10/12/15mm
4. Inner hole: 60mm or as your request
Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
40" | 1000 | 40 | 4.8/5 | 10 | 58 |
40" | 1000 | 40 | 4.8/5 | 12 | 58 |
40" | 1000 | 40 | 4.8/5 | 15 | 58 |
Packing
1. 5pcs packed in one plywood. Package size:120x120x10cm.
2. Gross weight:120kg per plywood. Around 350-400kg, need to pack in pallet.
Shipment term
1. 1-45kg, suggest to send by courier.
2. 45-100kg, suggest to send by air.
3. More than 100kg, suggest to send by sea.
Tag: Large circular saw blades Diamond cutting blade Concrete walk behind saw blade Sintered diamond wheels
