Johnson Tools 20mm, 35mm, 40mm, 50mm, 68mm M14 Vacuum Brazed Dry Diamond Core Drill Bits Set for Tiles

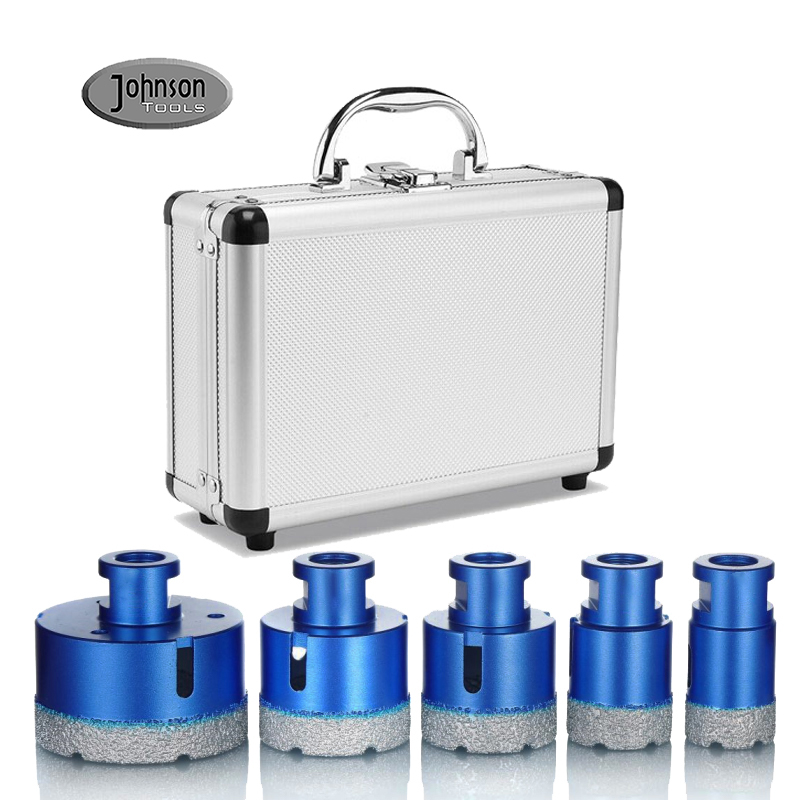

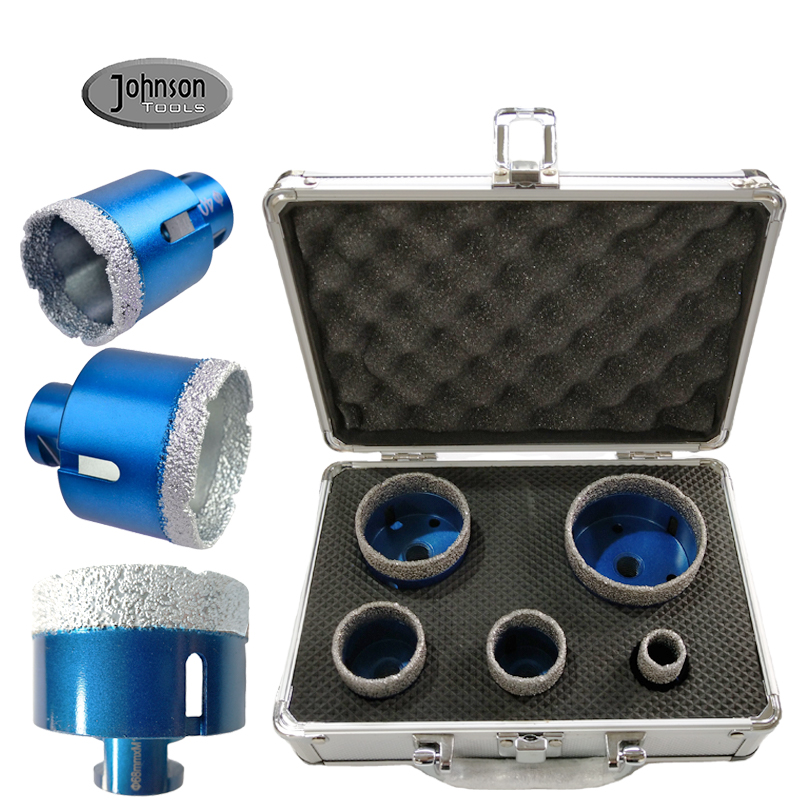

Product Overview: Equip yourself for any bathroom or kitchen installation with the Johnson Tools 5-Piece M14 Diamond Drill Bit Set. Designed for professional tilers and plumbers, this kit utilizes Vacuum Brazed Technology to drill Dry through the hardest Porcelain, Granite, Marble, and Ceramic Tiles with ease. The M14 Thread connection allows you to use your high-speed angle grinder for lightning-fast drilling.

Technical Specifications:

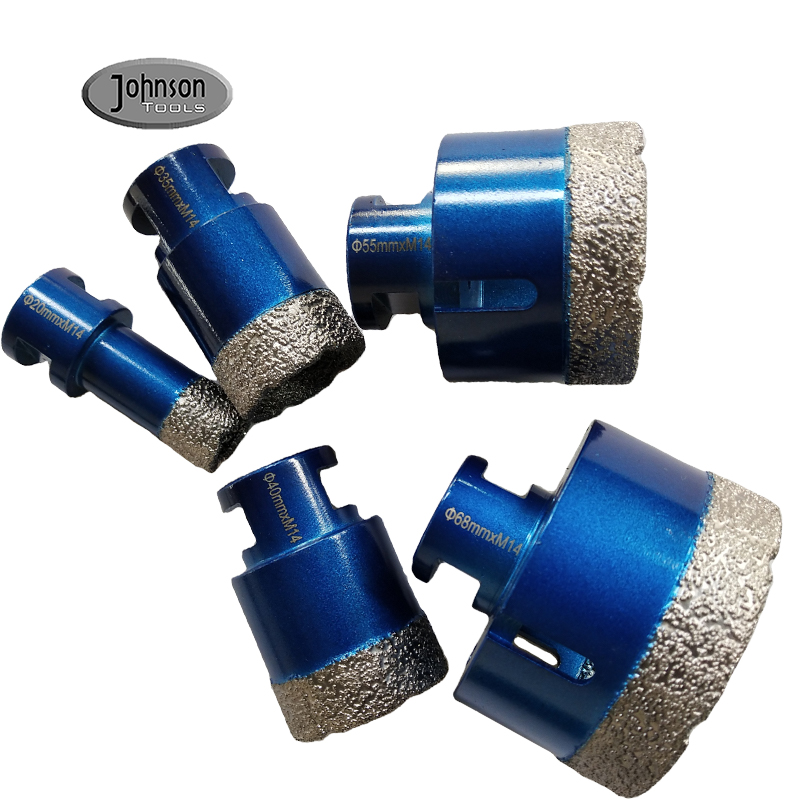

  • Included Sizes: 20mm, 35mm, 40mm, 50mm, 68mm.

  • Connection: M14 Female Thread (Angle Grinder).

  • Technology: Vacuum Brazed Diamond.

  • Working Length: Standard (approx. 35-45mm).

  • Application: Porcelain, Granite, Marble, Ceramic, Stone.

  • Usage: Dry or Wet (Wet extends life).

    oops...!

    no product data.

    Go to homepage

    Get In Touch With Us

    PRODUCT ADVANTAGES

    Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries.

    Johnson Tools 20mm, 35mm, 40mm, 50mm, 68mm M14 Vacuum Brazed Dry Diamond Core Drill Bits Set for Tiles 9
    High-quality raw materials
    Selection of high-quality emery,brazing process, not easy to dropsand.
    Johnson Tools 20mm, 35mm, 40mm, 50mm, 68mm M14 Vacuum Brazed Dry Diamond Core Drill Bits Set for Tiles 10
    Sharp cutting
    Convenient opening,easy to use, fast cuttingand opening.
    Johnson Tools 20mm, 35mm, 40mm, 50mm, 68mm M14 Vacuum Brazed Dry Diamond Core Drill Bits Set for Tiles 11
    Standard shank
    The drill shank can be compatible with electric drills, angle grinders,etc. through the conversion chuck,with a high degree of adaptation.
    Johnson Tools 20mm, 35mm, 40mm, 50mm, 68mm M14 Vacuum Brazed Dry Diamond Core Drill Bits Set for Tiles 12
    Multiple sizes
    Professional factory direct sales,quality assurance, complete specifications, available forselection, welcome to buy.

    PRODUCT parameter

    Product Name
    20mm, 35mm, 40mm, 50mm, 68mm M14 Vacuum Brazed Dry Diamond Core Drill Bits Set for Tiles
    Outer Diameter
    20mm, 35mm, 40mm, 55mm, 68mm
    Thread
    M14
    Application
    Vacuum Brazed Diamond Drill Bit. Designed for professional contractors who demand the very fast drilling all kinds of ceramic,
    porcelain, tile, stone materials. Capable of drilling clean hole. Dry drilling without the need for coolant.
    Less than 20mm, wax in it, better for dry drilling different kinds of materails.

    product usage

    图层 63 (3)
    • Vacuum-brazed Diamond Core Bits are very aggressive and ideal for drilling ceramic and porcelain tiles with super high precision while leaving smooth edges with minimal chipping.
    • They can typically drill more than 30 holes although life is dependent on the type of material.
    • Vacuum-brazed technology is superior to electroplating in that the bits last much longer than electro-plated diamond bits.

    Noteworthy Features:

    Our customers have consistently praised the excellence of our products. We are confident that you too will experience the same level of satisfaction. Should you require any customization, please do not hesitate to contact us. As the leading manufacturer of diamond tools, we are committed to providing you with the best solution possible.

    钎焊钻头好评图 (2)
    1
    Q1: Do I need a drill or an angle grinder?
    A: This specific set has an M14 Thread, which is designed for Angle Grinders. Using an angle grinder is recommended because its high speed (RPM) makes drilling hard tile much easier and faster. If you want to use a standard drill, you will need a "Hex to M14 Adapter".
    2
    Q2: Is water required?
    A: No. These bits are "Vacuum Brazed," which means they are designed to withstand the heat of Dry Drilling. However, dipping the bit in water or using a wet sponge will always help extend the lifespan of the tool.
    3

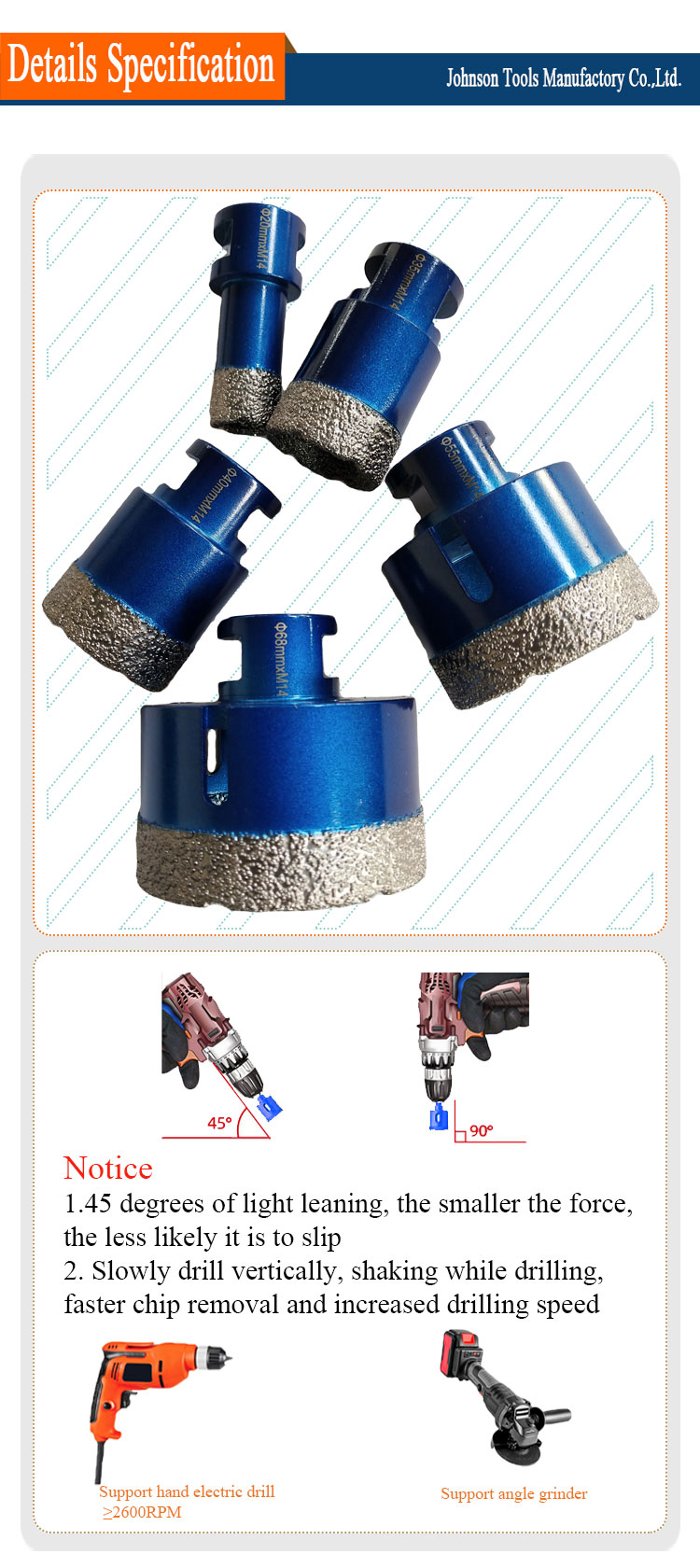

    Q3: How do I start a hole with an angle grinder?
    A: Since there is no pilot bit, start the machine and approach the tile at a 45-degree angle. Let the edge of the bit grind a small groove (a "C" shape). Once the groove is established, slowly bring the grinder to a 90-degree angle and use a gentle circular motion to finish the hole.
    4
    Q4: Can it drill Granite countertops?
    A: Yes. It is excellent for granite, marble, and quartz countertops, as well as hard porcelain floor tiles.
