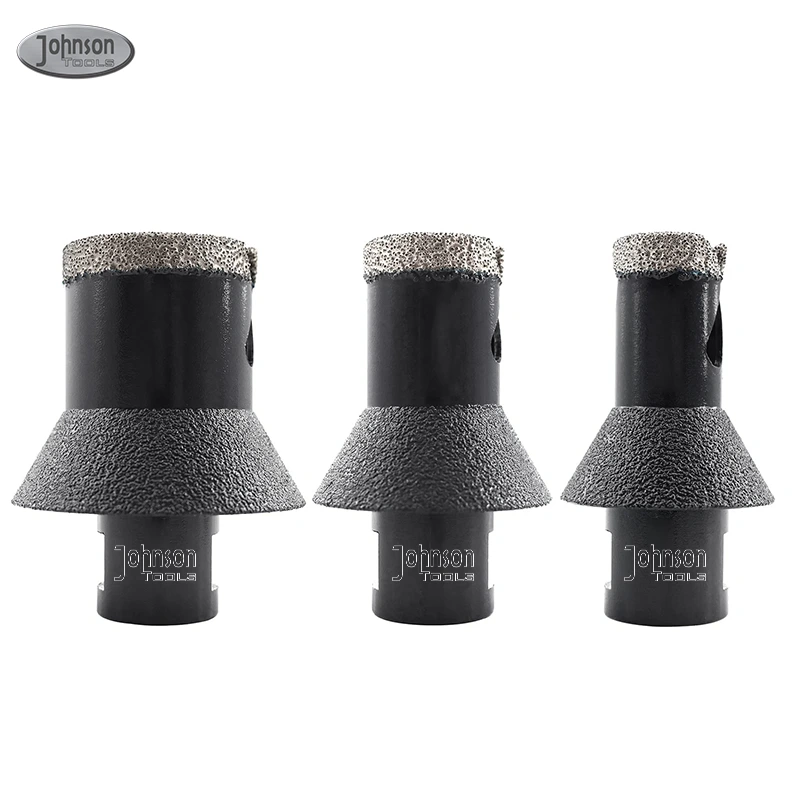

Johnson Tools Diamond Hole Saw: Effortless Bevelling and Chamfering for Tile, Porcelain, Marble, Ceramic, Granite – 5/8-11 Size 1

Johnson Tools Diamond Hole Saw: Effortless Bevelling and Chamfering for Tile, Porcelain, Marble, Ceramic, Granite – 5/8-11 Size 2

Johnson Tools Diamond Hole Saw: Effortless Bevelling and Chamfering for Tile, Porcelain, Marble, Ceramic, Granite – 5/8-11 Size 3

Johnson Tools Diamond Hole Saw: Effortless Bevelling and Chamfering for Tile, Porcelain, Marble, Ceramic, Granite – 5/8-11 Size 4

Johnson Tools Diamond Hole Saw: Effortless Bevelling and Chamfering for Tile, Porcelain, Marble, Ceramic, Granite – 5/8-11 Size 5

Johnson Tools Diamond Hole Saw: Effortless Bevelling and Chamfering for Tile, Porcelain, Marble, Ceramic, Granite – 5/8-11 Size 6

Johnson Tools Diamond Hole Saw: Effortless Bevelling and Chamfering for Tile, Porcelain, Marble, Ceramic, Granite – 5/8-11 Size 7

Johnson Tools Diamond Hole Saw: Effortless Bevelling and Chamfering for Tile, Porcelain, Marble, Ceramic, Granite – 5/8"-11" Size

Specifications:

Drill bits:

Diameter 20mm, 25mm, 35mm Height:7mm

Chamfer bits:

Bottom diameter:37mm, 42mmm, 52mm

Height:16mm

Base angle degree:60

Connection: 5/8"-11 Thread

Technology: Vacuum brazing technology

Color：Clear or as your request

Cutting Materials: Can Drilling and Milling, not onlydrilling but also for chamfering, enlarging, grinding & trimming etc

Inquiry

Write a Review

PRODUCT ADVANTAGES

Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries.

Vacuum Brazed Technology :

provides better working performance and longer service life

Lightning Tooth Design:

helps dissipate heat and remove debris for better performance

Connection:

With 5/8-Inch-11 Thread, Used on angle grinder,very easy to operate, the recommend speed is 6000 RPM.

PRODUCT parameter

Drill bits
Diameter	20mm, 25mm, 35mm
Height	7mm
Chamfer bits
Bottom diameter	37mm, 42mmm, 52mm
Total Length	65mm
Height	16mm
Base angle degree:	60
Thread:	5/8"-11, M14

product usage

APPLICATION:

Used for enlarging, chamferring and bevelling holes on glass, ceramic, porcelain tiles.

Dry or Wet using; Wet using will prolong the working life.
