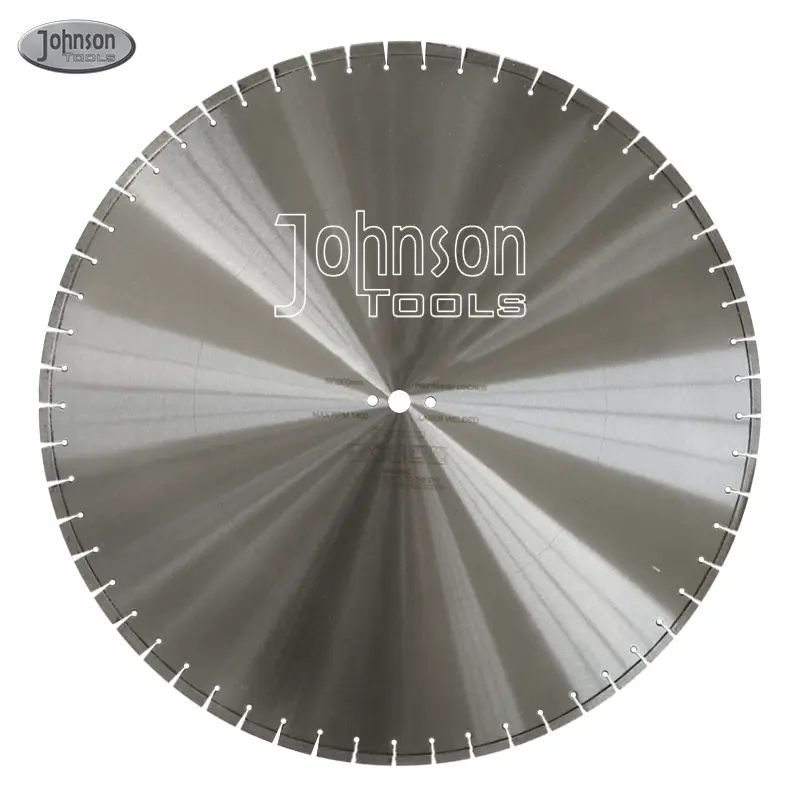

Product details of the diamond tool supplier
Product Overview
Standard production: johnsontools diamond tool supplier is produced in line with production standards. These standards are up to both domestic and international standards and contribute to the fine craftsmanship of this product. Product quality meets the requirements of international quality standards. Johnson Tools's diamond tool supplier is widely applicable in the industry. Quality always comes in a more obvious place in Johnson Tools Manufactory Co.,Ltd.
Product Introduction
More detailed information on diamond tool supplier is shown for you at below.
PRODUCT ADVANTAGES
Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries.
PRODUCT parameter
| Inch | Diameter | Teeth length | Teeth thickness | Teeth height | Teeth number |
| (mm) | (mm) | (mm) | (mm) | (nos) | |
| 24" | 600 | 40 | 5 | 12/15 | 42 |
| 28" | 700 | 40 | 6.5 | 12/15 | 50 |
| 32" | 800 | 40 | 6.5 | 12/15 | 57 |
| 36" | 900 | 40 | 6.5 | 12/15 | 64 |
| 40" | 1000 | 40 | 7 | 12/15 | 70 |
| 44" | 1100 | 40 | 7.5 | 12/15 | 74 |
| 48" | 1200 | 40 | 8 | 12/15 | 80 |
| 52" | 1300 | 40 | 8 | 12/15 | 88 |
| 56" | 1400 | 40 | 9 | 12/15 | 95 |
| 60" | 1500 | 40 | 9 | 12/15 | 100 |
product usage
STEEL DISCS

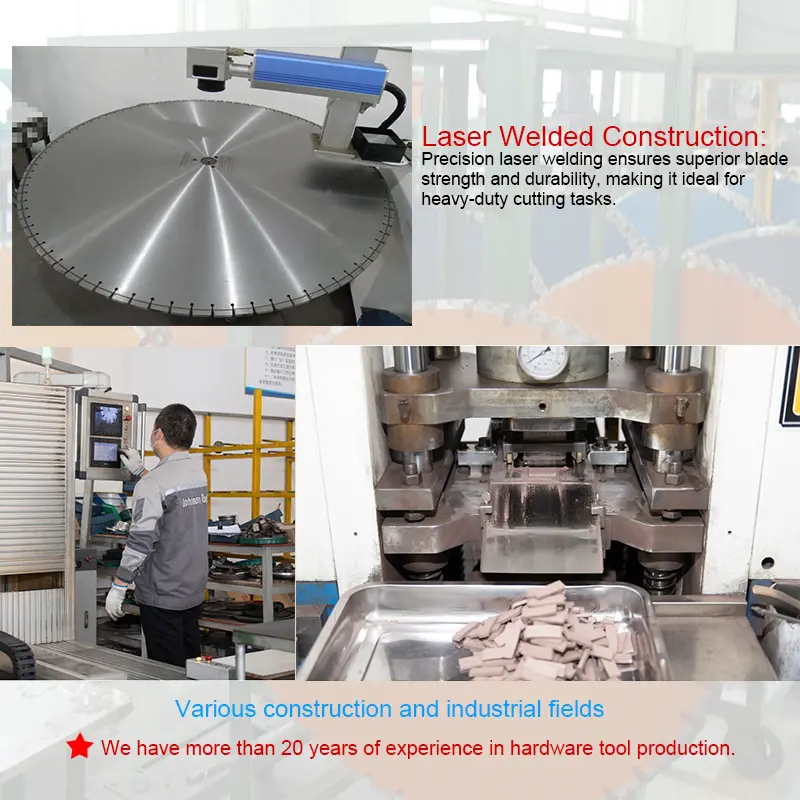

Steel discs of Laser welded Pre-stressed concrete saw blade, we used from China's Largest Steel Discs Factory. Keep more toughness and stability. Cooperated with them +20years. Pass ISO9002 Certificate.
Materials (carbon content): 30CrMo(0.26-0.34)
Type: Normal type, Silent type.
Product testing parameters before leaving the factory:
Tolerance of Diameter: +0.5
Tolerance of Thickness: +0.07
Tolerance of Center hole: +21μm /H8/H7
HRC, Flat, Side run out, there are strict GB testing standards.
Some Information which you concern

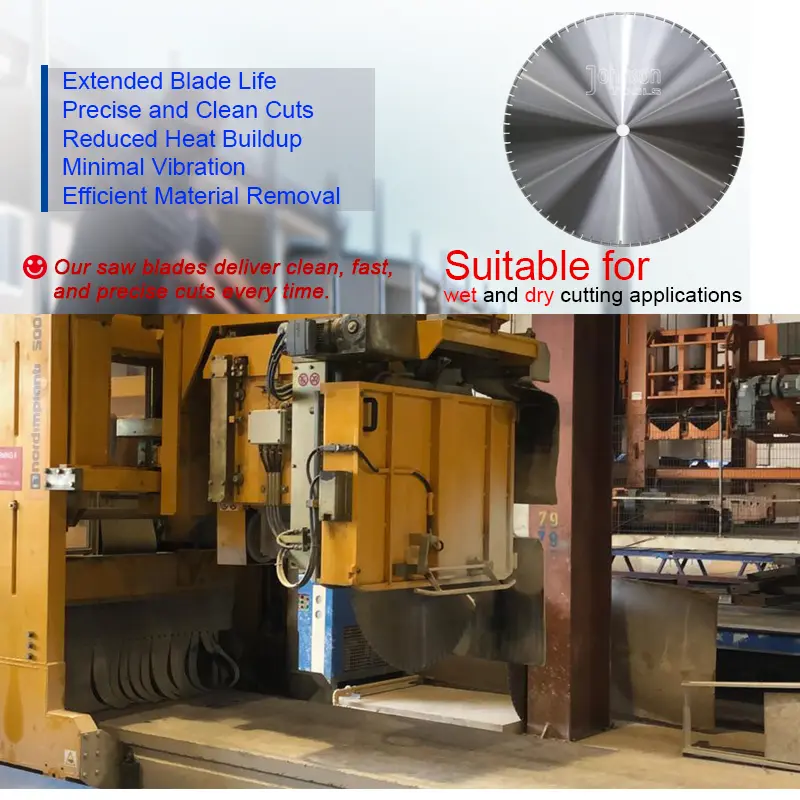

Main Fixed cutting machine: Eelematic, Levanto, Ultraspan, Nord Impant, Xtec, Echo, Tecnospan, Weiler, etc.
Cutting Application: Hollowcore PSC, beams and reailway sleepers.
HS code of precast concrete saw blade: 8202391000.
900mm precast concrete saw blade, our standard grade can cut 600hours lifespan.
Logo can laser mark or screen painting on the blade, FREE.
Widely selling to South Africa, Thailand, Singapore, Spain, Mongolia，Kazakhstan， etc.
