Noteworthy Features:
Global Leading Diamond Tool Manufacturer.

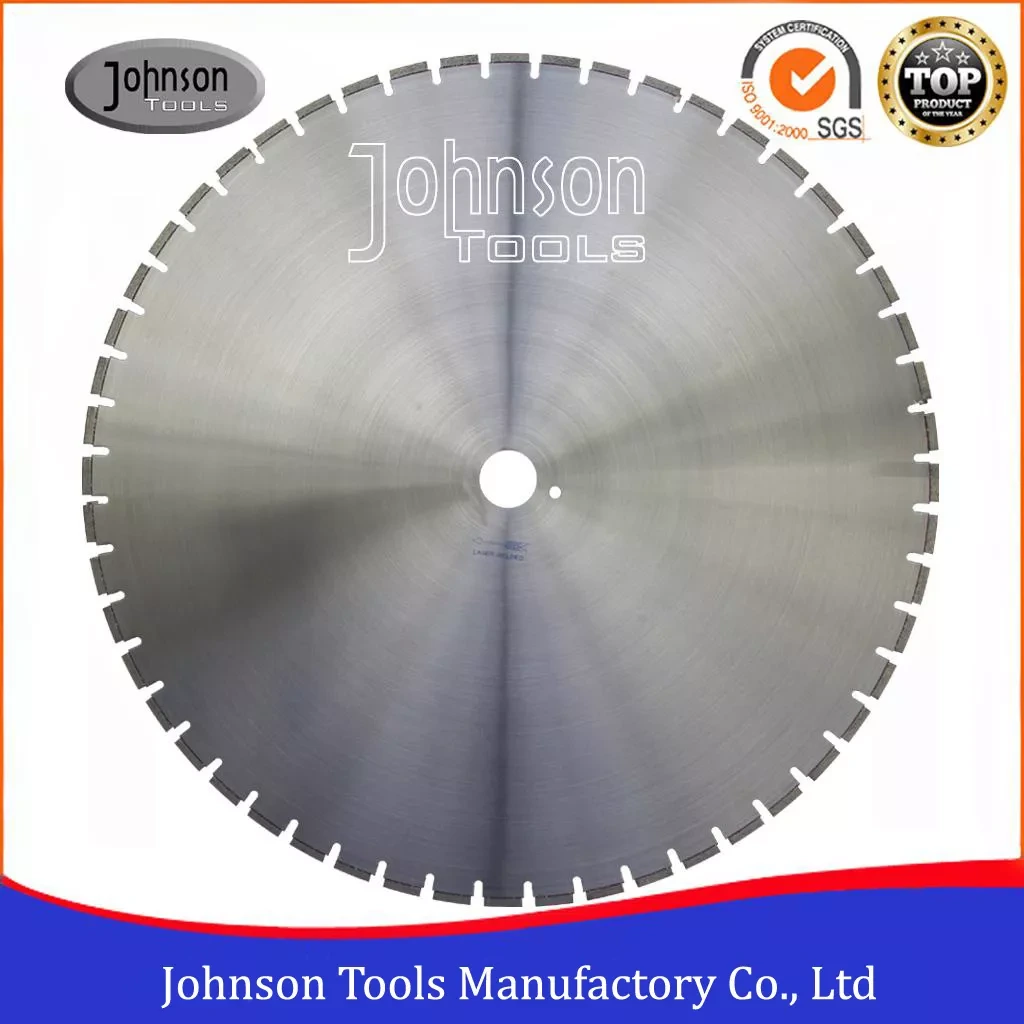

Johnson Tools 36" 900mm Laser Welded Diamond Blades for Precast Prestressed Concrete Cutting
36", 900mmLaser Welded Diamond Blades for precast prestressed concrete cutting
Hollow concrete is the most important prefabricated floor slab, it is popular because high carrying capacity and strong fire resistance. It can also be used in steel frame buildings, because of the big link strength of the building structure and good stability, Hollow concrete is the most widely used precast concrete, which is widely used in a variety of frame buildings, such as residential, gymnasium, workshop, supermarket. Our laser welded precast prestressed concrete diamond cutting blade is a professional tool for cutting hollow core concrete beds, prestressed concrete, precast concrete, etc.
Feature
1. 100% laser welded technology.
2. Wet Cutting.
3. Fits to Precast Prestressed Concrete Machine—Bridge Crane, Prestressed Concrete cutting machine.
4. Well exported to South Africa, Bahrain, Vietnam, Egypt, the UK, and Thailand markets.
Spec.
Diameter:900mm
Segment length: 40mm
Segment thickness:6.5mm
Segment height:10/12/15mm
Inner hole: 60mm or as your request
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
PRODUCT ADVANTAGES
Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries.
Diamond Segments:
Diamond we used is Element Six and Domestic high grade. With High-Quality diamond ensuring efficient cutting performance.
Blade Diameter :
Precast concrete diamond cutting blades come in various diameters, typically ranging from 24 inches to 60 inches or more.
100% Laser Welding：
With laser welding, it can ensures superior blade strength and durability, making it ideal for heavy-duty cutting tasks.
Diamond Concentration:
Higher diamond concentration is preferable for cutting prestressed concrete due to its toughness and the need for efficient cutting performance.
PRODUCT parameter
Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
36" | 900 | 40 | 6.5 | 10 | 52 |
36" | 900 | 40 | 6.5 | 12 | 52 |
36" | 900 | 40 | 6.5 | 15 | 52 |
product usage
STEEL DISCS
Steel discs of Laser welded Pre-stressed concrete saw blade, we used from China's Largest Steel Discs Factory. Keep more toughness and stability. Cooperated with them +20years. Pass ISO9002 Certificate.
Materials (carbon content): 30CrMo(0.26-0.34)
Type: Normal type, Silent type.
Product testing parameters before leaving the factory:
Tolerance of Diameter: +0.5
Tolerance of Thickness: +0.07
Tolerance of Center hole: +21μm /H8/H7
HRC, Flat, Side run out, there are strict GB testing standards.
APPLICATIONS:
- Cutting Precast Concrete Elements
- Hollow Core Concrete Bed Cutting
- Prestressed Concrete Pile Machines
- Bridge Cranes
- Prestressed Concrete Cutting Machines
CE CERTIFICATION
CE certification is a crucial indicator of product quality and safety in the European market. Our diamond drill bits not only meet the requirements for CE certification but also provide reliable assurance to users based on compliance with European market standards.
These certifications not only validate our quality management system but also represent the trust and endorsement of customers in their choice. We will continue to strive for ongoing improvements in product quality to meet the demand for laser saw blades of high standards and quality from our customers.
🛠️ Professional Grade Laser Saw Blade, Effortless and Efficient Cutting 🛠️
Our customers have consistently praised the excellence of our products. We are confident that you too will experience the same level of satisfaction. Should you require any customization, please do not hesitate to contact us. As the leading manufacturer of diamond tools, we are committed to providing you with the best solution possible.
