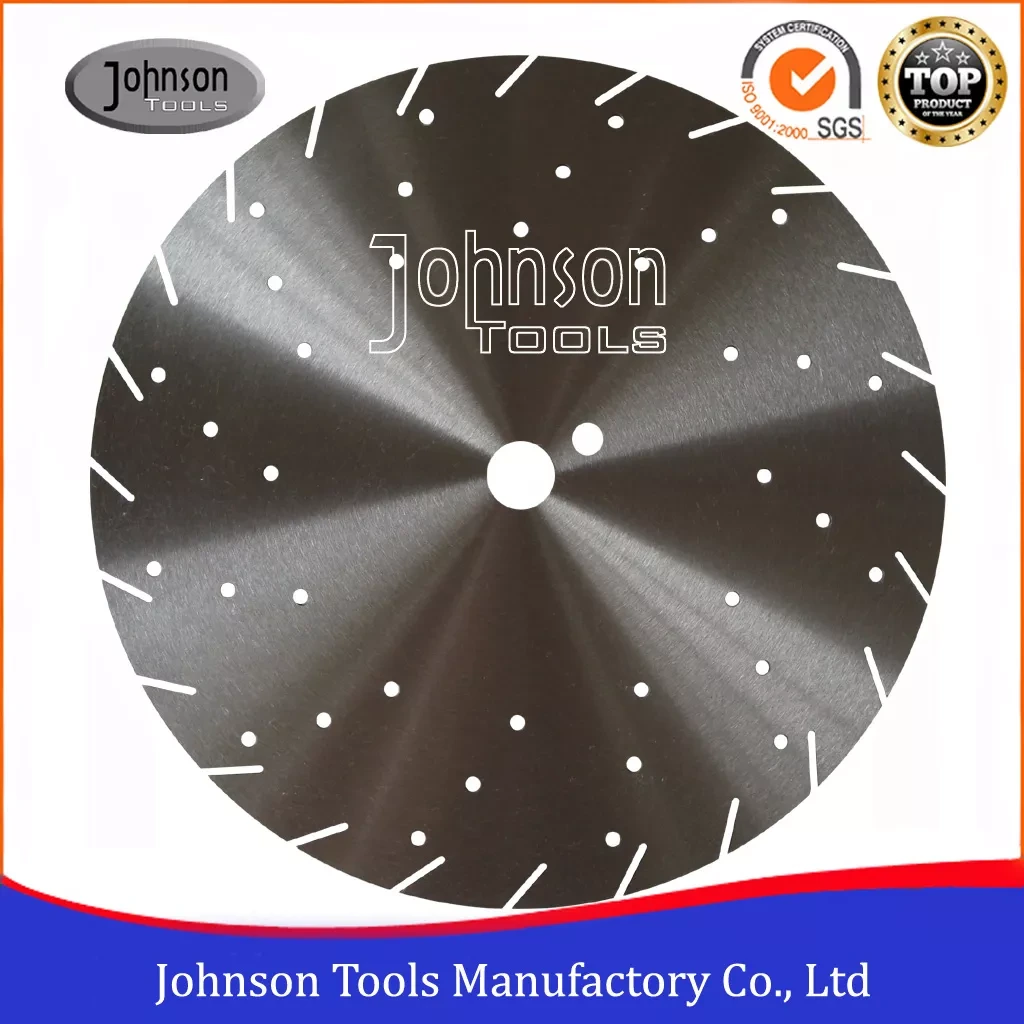

Johnson Tools 330 to 340mm Steel Disc for 350mm Diamond Saw Blade, Key or U Slot , Saw Blades Blanks 1

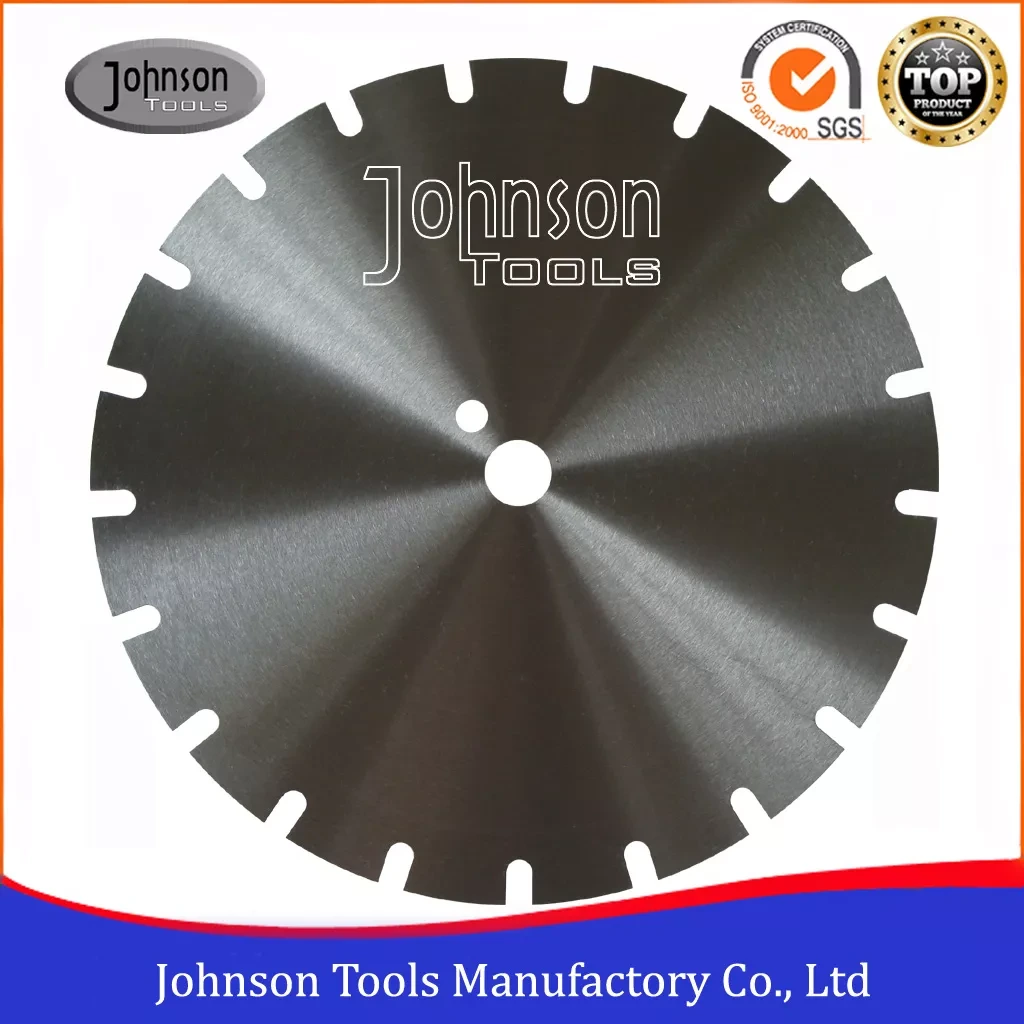

Johnson Tools 330 to 340mm Steel Disc for 350mm Diamond Saw Blade, Key or U Slot , Saw Blades Blanks 2

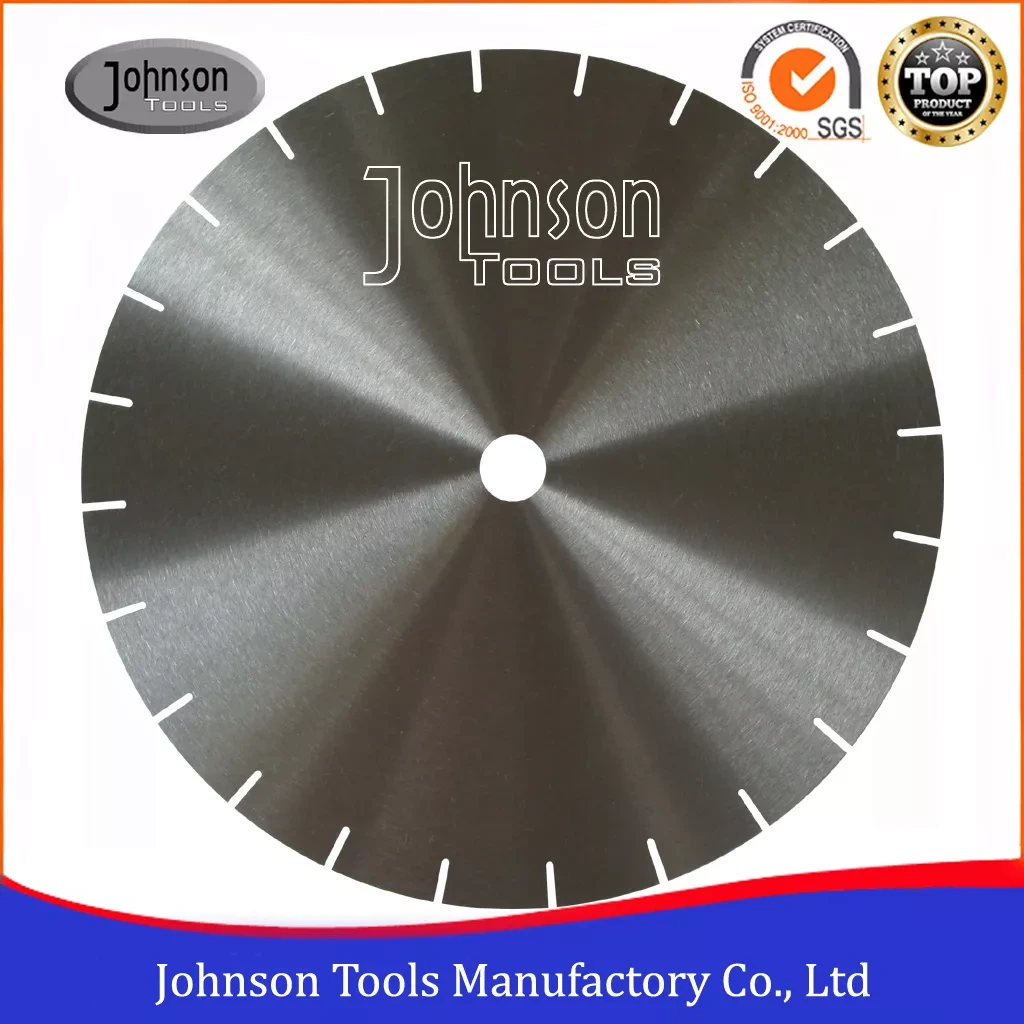

Johnson Tools 330 to 340mm Steel Disc for 350mm Diamond Saw Blade, Key or U Slot , Saw Blades Blanks 3
Johnson Tools 330 to 340mm Steel Disc for 350mm Diamond Saw Blade, Key or U Slot , Saw Blades Blanks 4
1 / 4
Johnson Tools 330 to 340mm Steel Disc for 350mm Diamond Saw Blade, Key or U Slot , Saw Blades Blanks 1
Johnson Tools 330 to 340mm Steel Disc for 350mm Diamond Saw Blade, Key or U Slot , Saw Blades Blanks 2
Johnson Tools 330 to 340mm Steel Disc for 350mm Diamond Saw Blade, Key or U Slot , Saw Blades Blanks 3
Johnson Tools 330 to 340mm Steel Disc for 350mm Diamond Saw Blade, Key or U Slot , Saw Blades Blanks 4

Johnson Tools 330 to 340mm Steel Disc for 350mm Diamond Saw Blade, Key or U Slot , Saw Blades Blanks

Specifications:

Blade Diameter: 330mm, 340mm.  We also can provide 320mm, 326mm, 336mm, 350mm.

Arbor Size: 25.4mm/50mm/60mm or as your request

Pin hole: Usually 25.4mm center hole with one 12mm pin hole, CPD is 28.575mm.



Steel discs Thickness: 1.2mm, 1.4mm, 2.2mm or 2.4mm.

Slot: Key slot, Narrow slot, Wide slot.

Material: 30CrMo, 50Mn2V, 75Cr1.

Hardness: HRC37±2

Special steel disc thickness, center hole, pin hole can be do as your drawing.



Outer diameter of steel discs we can provide from 80mm to 2200mm.

Suitable for Laser welded, Silver Brazed TECHNOLOGY.

Get In Touch With Us

PRODUCT parameter

Spec.

DIA. OF BLANK

Thickness

Teeth

DEPTH OF SLOT

WIDTH OF SLOT

Hole

Flatness

End jump

Flange

D

D1

E

Z

A

B

H

350

330-340

2.4/2.2/1.4/1.2mm

21 Wide slot

18

10

50

0.1

0.15

100

350

330-340

2.4/2.2/1.4/1.2mm

21 Wide slot

18

10

25.4

0.1

0.15

100

350

340-340

2.4/2.2/1.4/1.2mm

24 Key or U slot

18

3

50

0.1

0.15

100

350

330-340

2.4/2.2/1.4/1.2mm

24 Key or U slot

18

3

25.4

0.1

0.15

100


product usage

Johnson Tools 330 to 340mm Steel Disc for 350mm Diamond Saw Blade, Key or U Slot , Saw Blades Blanks 5

WHY CHOOSE US?

 1.SGS, MPA certificate, Established in 2000 year, Rich producing

     experience.
 2.Well approved by our worldwide clients, export more than 80

     countries.
 3.Success formula for concrete saw blade
 4.Quick Delivery time.
 5.One-Day reply to your inquiry and question.

what steel discs can you provide?


1. Saw blade blanks for Laser welded diamond saw blade.
2. Saw blade blanks for Silver brazed diamond saw blade
3. Saw blade blanks for Diamond Tuck point blade.
4. Steel discs for Electroplated saw blade.
5. Steel disc for Diamond grinding wheels.
6. Steel tube for Diamond drill bits.
7. Steel blade blanks for Ring saw blade.
8. Steel blade blanks for Loop saw blade.
9. Steel blade blanks for TCT saw blade.
