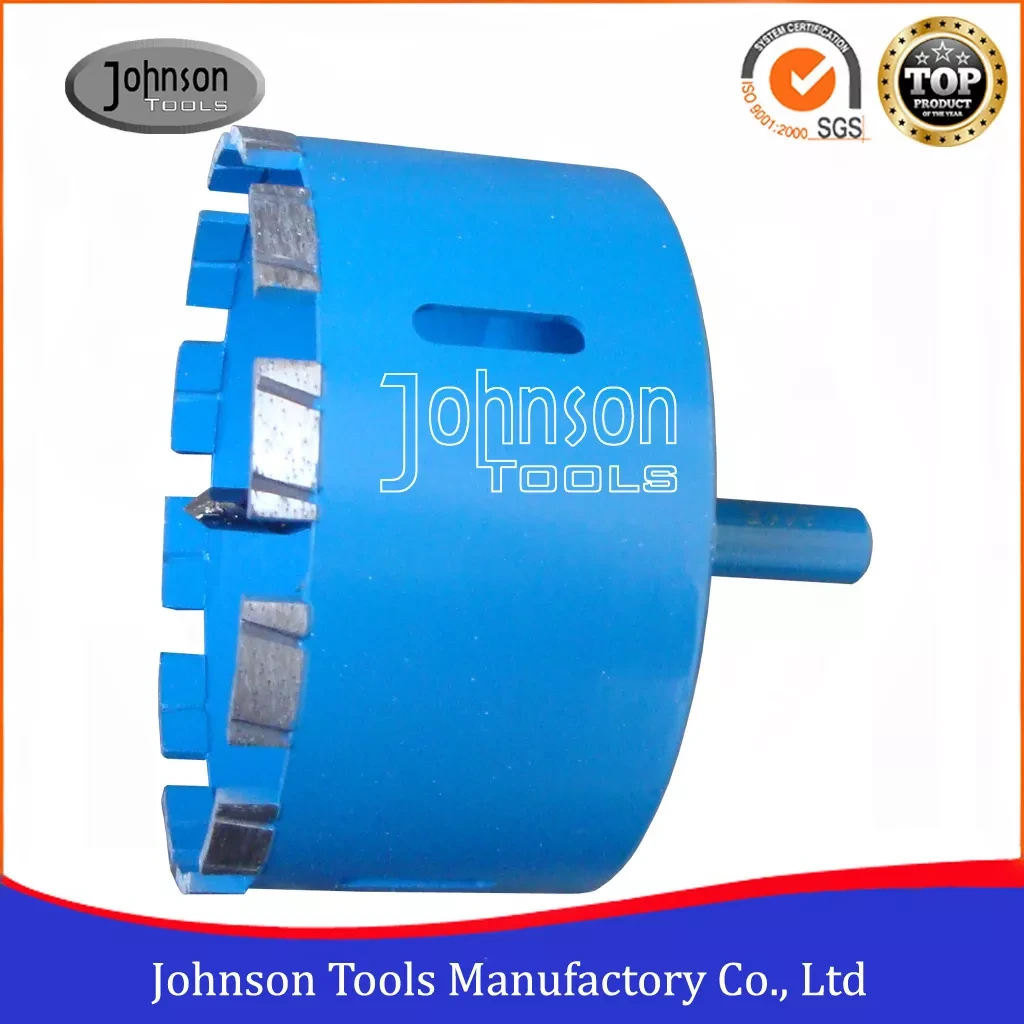

Drill Bit: OD115mm Diamond Core Bit for Stone
Drill Bit: OD115mm Diamond Core Bit for Stone
Description:
1. Core drilling thinner applications of stone, including granite, marble, sandstone, limestone, and so on.
2. Premium grade core bits that deliver fast drilling speed and extend product life.
3. Use application with core drilling machines and hand drills.
4. Production strictly according to customer requirements.
5. Size could be customized.
Feature:
1. Usage: With water application
2. Processing Technology: silver welded
3. Applications: Stone drilling
4. Segment type: Normal segment
5. Delivery time: Around 20-30days
Spec.:
| Big Diamond Core Bit for Stone | ||||||
| Item No. | Diameter | Teeth No. | Segment Dimension | Total Length | Connection Type | |
| mm | Height | Thickness | ||||
| BGB115 | 115 | 11 | 8 | 3 | 83 | 1/2" shaft |
| BGB(UNC)115 | 115 | 11 | 8 | 3 | 103 | 5/8"-11 or M14 |
Other size we can do as following
| Big Diamond Core Bit for Stone | ||||||
| Item No. | Diameter | Teeth No. | Segment Dimension | Total Length | Connection Type | |
| mm | Height | Thickness | ||||
| BGB75 | 75 | 7 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB80 | 80 | 8 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB85 | 85 | 8 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB90 | 90 | 9 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB95 | 95 | 9 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB100 | 100 | 10 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB105 | 105 | 10 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB110 | 110 | 11 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB120 | 120 | 12 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB125 | 125 | 12 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB(UNC)75 | 75 | 7 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)80 | 80 | 8 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)85 | 85 | 8 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)90 | 90 | 9 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)95 | 95 | 9 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)100 | 100 | 10 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)105 | 105 | 10 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)110 | 110 | 11 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)120 | 120 | 12 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)125 | 125 | 12 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)132 | 132 | 13 | 8 | 3.8 | 103 | 5/8"-11 or M14 |
| BGB(UNC)142 | 142 | 13 | 8 | 3.8 | 103 | 5/8"-11 or M14 |
| BGB(UNC)152 | 152 | 14 | 8 | 3.8 | 103 | 5/8"-11 or M14 |
| BGB(UNC)162 | 162 | 15 | 8 | 3.8 | 103 | 5/8"-11 or M14 |
| BGB(UNC)172 | 172 | 16 | 8 | 3.8 | 103 | 5/8"-11 or M14 |
| BGB(UNC)182 | 182 | 17 | 8 | 3.8 | 103 | 5/8"-11 or M14 |
| BGB(UNC)200 | 200 | 19 | 8 | 4.5 | 103 | 5/8"-11 or M14 |
| BGB(UNC)225 | 225 | 22 | 8 | 4.5 | 103 | 5/8"-11 or M14 |
| BGB(UNC)250 | 250 | 24 | 8 | 4.5 | 103 | 5/8"-11 or M14 |
Packing and shipping
Each Core drill bits are packed in plastic box, then according to the size, normal put in an export standard carton, gross weight per carton is limited within 15-20kg.
Shipping date: If we have steel body in our stock, normally shipment will be around 15 days. If not, usually around 20-30days.
Delivery way: By sea, by air, by courier, by land, by courier, etc.
Tag: Stone core bits, 45mm diamond hole saw, 65mm granite drill bit, 110mm drill bit for stone
