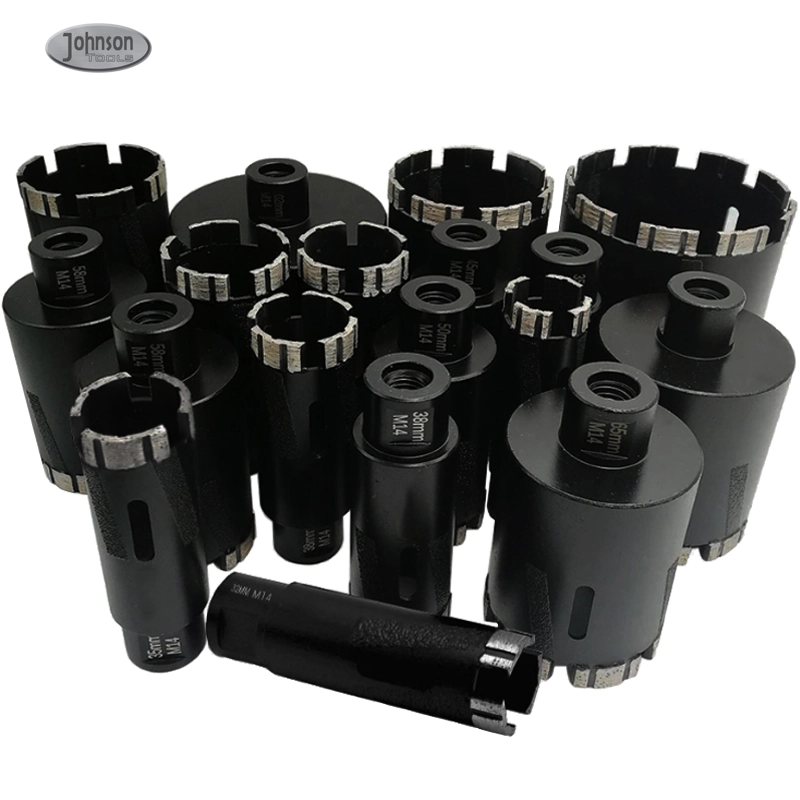

Johnson Tools 6-135mm Diamond Drill Bit Manufacturers Standard Size Drill Bits

Specification:

Diameter: 6-135 mm

Length: 102 mm

Thread: M14, 5/8-11''

Technology: Laser Welded

Application: Dry use on various stone

Inquiry

Write a Review

Get In Touch With Us

PRODUCT ADVANTAGES

Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries.

Precise Drilling:

Laser welding technology allows for precise positioning of diamond segments on the drill bit. This precision enhances the accuracy of drilling, making it suitable for applications where precision is crucial.

High Diamond Concentration:

Laser-welded drill bits often have a high concentration of diamond segments. This high diamond content contributes to the durability and efficiency of the drill bit, enabling it to cut through hard materials.

Smooth and Clean Holes:

Laser-welded diamond drill bits produce smooth and clean holes with minimal chipping. This is advantageous when drilling holes for applications where the aesthetics of the hole are important.

Wide Range of Sizes:

Laser-welded diamond drill bits are available in a wide range of sizes, making them suitable for various drilling diameters. This versatility allows users to choose the appropriate size for their specific drilling needs.

PRODUCT parameter

Diameter	Segment Dimension		Teeth No.
mm	Height	Thickness	Teeth No.
6	10	2	Crown
8	10	2	Crown
10	10	2	Crown
12	10	2.5	Crown
14	10	2.5	Crown
16	10	2.5	Crown
18	10	2.5	Crown
20	10	2.5	Crown
25	10	2.5	Crown
32	10	3	Crown
35	10	3	4
38	10	3	4
40	10	3	4
45	10	3	4
50	10	3	5
60	10	3	6
65	10	3	6
70	10	3	7
80	10	3	8
90	10	3	9
100	10	3.5	9
135	10	3.5	10

product usage

Safety Precautions:

Prioritize safety by wearing appropriate personal protective equipment (PPE), including safety glasses or goggles, hearing protection, and gloves. If wet drilling, also use suitable waterproof clothing.

Drilling Angle:

Maintain a consistent drilling angle throughout the process. Avoid excessive tilting or angling, as this can result in uneven drilling and may lead to damage to the drill bit.
