105mm to 350mm Sintered Blade Cutting Granite

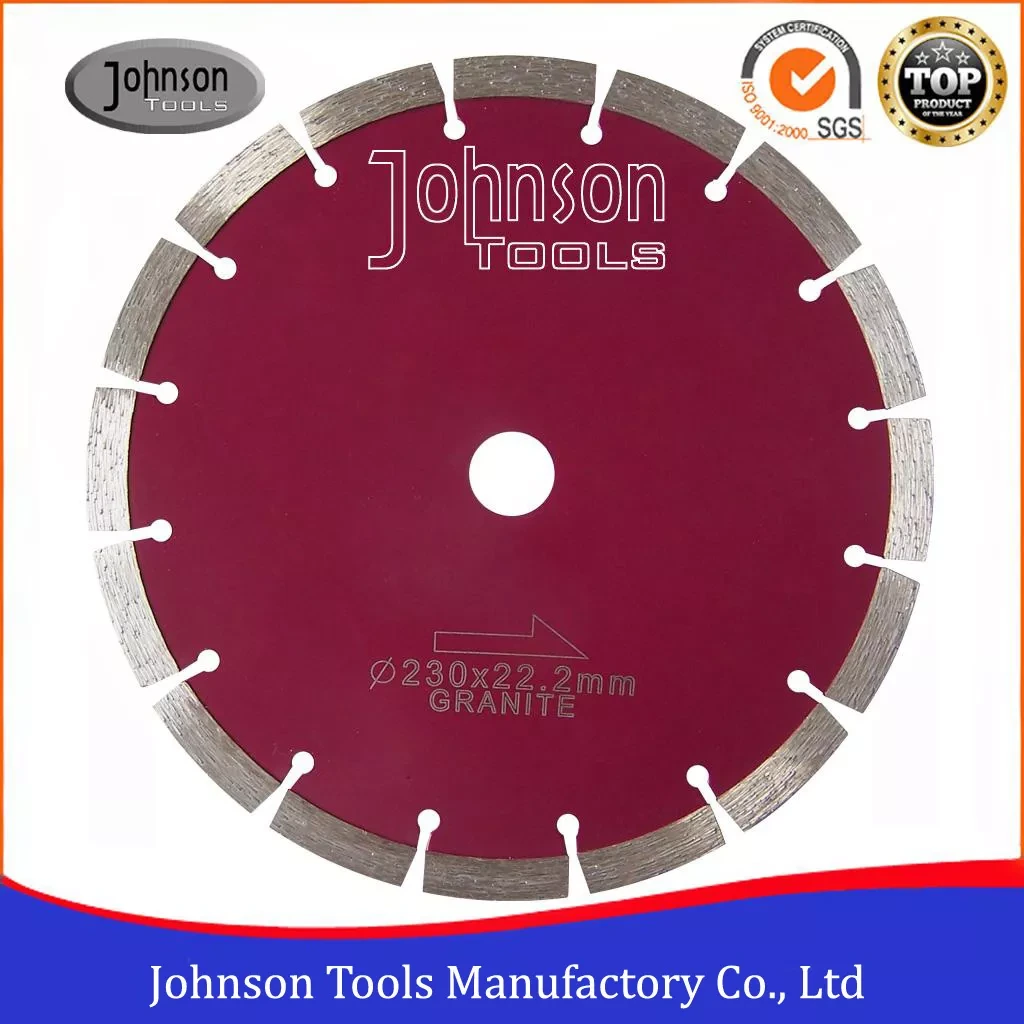

105mm-350mm Sintered Segmented Circular Diamond Saw Blade Granite Cutting Blade
Sintered segmented saw blades are designed for granite, concrete and a variety of masonry materials cutting. Can be fixed in hand held circular saws and most angle grinders. Easy operation and high efficiency. Different center hole can be supplied. Good cutting performance is satisfied by our clients.
Specification:
Outer diameter: 105mm to 350mm.
Segment thickness: 1.8-3.2mm
Segment height: 7/10mm
Inner hole: 16/20mm, 22.23mm, 25.4mm, 50mm or as your request
Machine: Angle grinder, Hand held saw, Table saw.
Cutting: Dry or Wet Cutting.
Features
1). Sharp cutting edge
2). Reliable and good stability
3). Well accepted for economical price and good quality
4). Original manufacturer
5). Work without water, but best cutting result with water
| Item No. | Diameter | Segment dimension | Teeth number | Inner hole | ||
| Inch | mm | Thickness | Height | |||
| SSGR-105 | 4 | 105 | 1.8 | 7/10 | 8nos | 16/20 |
| SSGR-110 | 4.3 | 110 | 1.8 | 7/10 | 8nos | 16/20 |
| SSGR-115 | 4.5 | 115 | 1.8 | 7/10 | 9nos | 20/22.23 |
| SSGR-125 | 5 | 125 | 1.8 | 7/10 | 9nos | 20/22.23 |
| SSGR-150 | 6 | 150 | 2 | 7/10 | 12nos | 20/22.23 |
| SSGR-180 | 7 | 180 | 2 | 7/10 | 14nos | 20/22.23 |
| SSGR-200 | 8 | 200 | 2.2 | 7/10 | 14nos | 20/22.23 |
| SSGR-230 | 9 | 230 | 2.2 | 7/10 | 16nos | 20/22.23 |
| SSGR-250 | 10 | 250 | 2.4 | 10 | 18nos | 20/25.4 |
| SSGR-300 | 12 | 300 | 3 | 10 | 22nos | 20/25.4 |
| SSGR-350 | 14 | 350 | 3.2 | 10 | 24nos | 25.4 |
Tag: Granite edging tools Vacuum brazed diamond Stone drill bit Table saw blade
