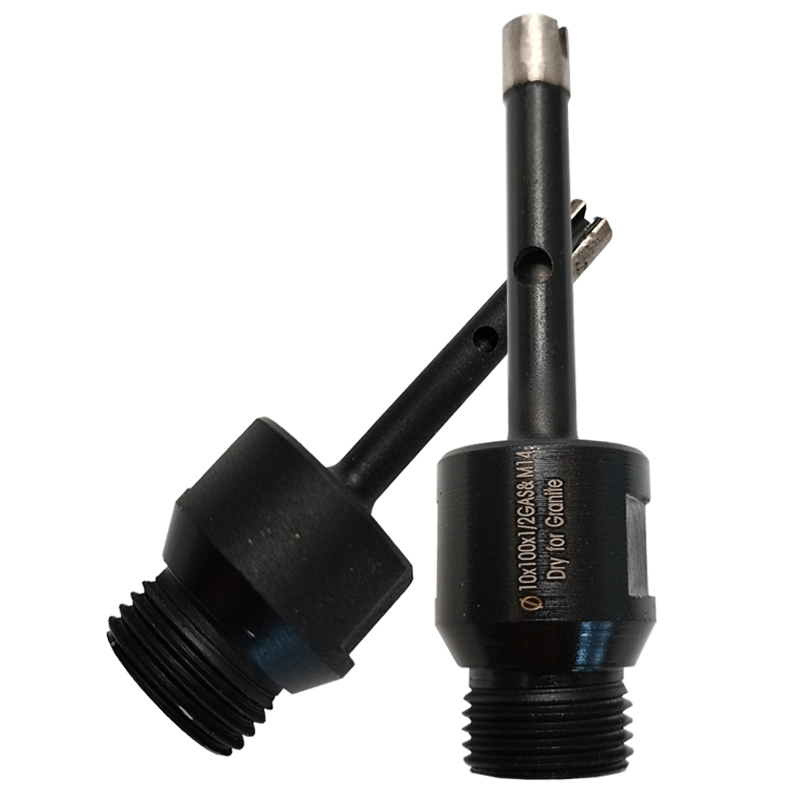

Johnson Tools 10mm Diamond Dry M14&1/2BSP Thread Core Drills Bits for Granite,Quartz, And Marble
Specification:
Diameter: 10 mm
Length: 10 mm
Thread: M14, 5/8-11''
Segment type: Crown segment or normal segment
Technology: Outer diameter ≤ 18mm is silver soldering, ≥ 20mm is laser welding.
Application: Core drilling thinner applications of stone, including granite, marble, sandstone, limestone, and so on.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
PRODUCT ADVANTAGES
Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries.
Core Bit Type:
Premium grade for fast drilling and extended product life.
Connection Type:
Available with M14 and 5/8”-11 shaft connections.
Customization:
Production strictly follows customer requirements, and the size can be customized.
Usage:
Suitable for core drilling machines and hand drills.
PRODUCT parameter
| Dry core bits for granite | ||||
| Diameter | Segment Dimension | Teeth No. | Vacuum brazed Protect Teeth | |
| mm | Height | Thickness | ||
| 6 | 10 | 2 | Crown | —— |
| 8 | 10 | 2 | Crown | —— |
| 10 | 10 | 2 | Crown | —— |
| 12 | 10 | 2.5 | Crown | —— |
| 14 | 10 | 2.5 | Crown | —— |
| 16 | 10 | 2.5 | Crown | —— |
| 18 | 10 | 2.5 | Crown | —— |
| 20 | 10 | 2.5 | Crown | 4(O)2(I) |
| 25 | 10 | 2.5 | Crown | 4(O)2(I) |
| 32 | 10 | 3 | 4 | 4(O)2(I) |
| 35 | 10 | 3 | 4 | 4(O)2(I) |
| 38 | 10 | 3 | 4 | 4(O)2(I) |
| 50 | 10 | 3 | 5 | 4(O)2(I) |
| 60 | 10 | 3 | 6 | 4(O)2(I) |
| 70 | 10 | 3 | 7 | 4(O)2(I) |
| 80 | 10 | 3 | 8 | 4(O)2(I) |
| 90 | 10 | 3 | 9 | 4(O)2(I) |
| 100 | 10 | 3.5 | 9 | 4(O)2(I) |
product usage
Core Drilling for Thinner Stone Applications:
- Core drilling thinner applications of stone, including granite, marble, sandstone, limestone, and so on.
- Premium grade core bits that deliver fast drilling speed and extend product life.
- Use application with core drilling machines and hand drills.
- Production strictly according to customer requirements.
- Size could be customized.
