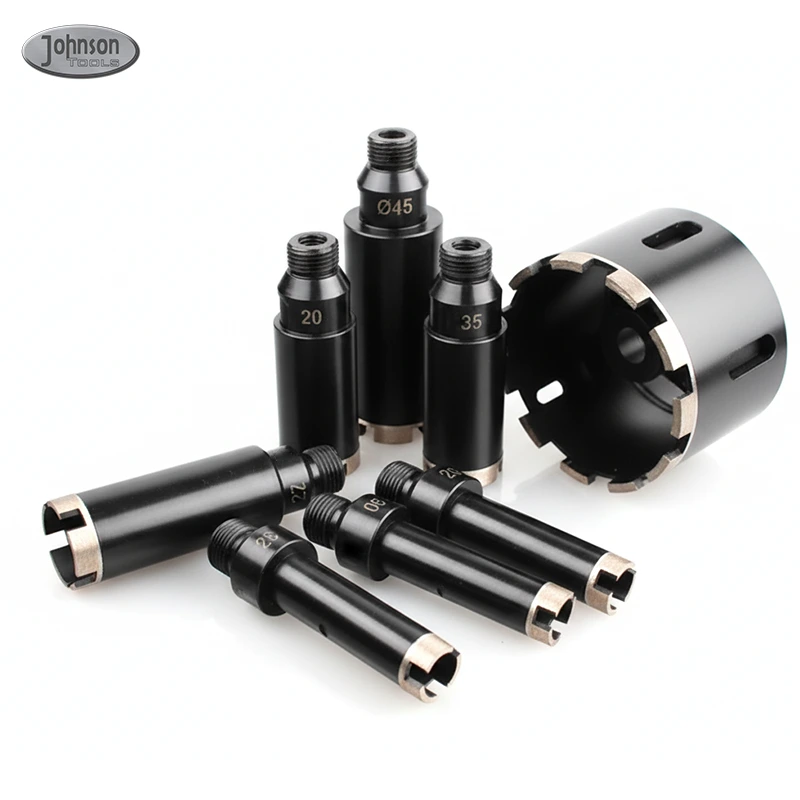

Johnson Tools 1/2 Gas, M14 Thread Shank Diamond Core Drill Bit for Wet and Dry Granite & Marble
Specification:
Diameter: 6-50 mm
Thread: M14, 1/2 gas, 5/8"-11 Thread
Segment type: Crown segment or normal segment
Application: Core drilling applications of stone, including granite, marble, sandstone, limestone, and so on. Use application with core drilling machines and hand drills.
Production strictly according to customer requirements.
Size could be customized.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
PRODUCT ADVANTAGES
Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries.
Core Bit Type:
Premium grade for fast drilling and extended product life.
Connection Type:
Available with M14 and 5/8”-11 shaft connections.
Customization:
Production strictly follows customer requirements, and the size can be customized.
Usage:
Suitable for core drilling machines and hand drills.
PRODUCT parameter
| Diameter（mm） | Segment Height（mm） | Seg. No. | Diameter（mm） | Segment Height（mm） | Seg. No. |
| 6 | ￠6x1.5x8 | C type | 55 | 24x3x10 | 5 |
| 8 | ￠8x2x8 | 60 | 20x3x10 | 6 | |
| 10 | ￠10x2.0x10 | C type or continue | 65 | 24x3x10 | 6 |
| 12 | ￠12x2.5x10 | 70 | 20x3x10 | 7 | |
| 14 | ￠14x2.5x10 | 75 | 24x3x10 | 7 | |
| 16 | ￠16x2.5x10 | Continue | 80 | 20x3x10 | 8 |
| 18 | ￠18x2.5x10 | 85 | 24x3x10 | 8 | |
| 20 | ￠20x2.5x10 | 90 | 20x3x10 | 9 | |
| 25 | ￠25x2.5x10 | 95 | 24x3x10 | 9 | |
| 30 | ￠30x3x10 | 100 | 24x3.5x10 | 9 | |
| 32 | ￠32x3x10 | 115 | 24x3.5x10 | 10 | |
| 35 | ￠35x3x10 | 120 | 24x3.5x10 | 10 | |
| 38 | ￠38x3x10 | 130 | 24x3.5x10 | 11 | |
| 40 | 20x3x10 | 4 | 140 | 24x3.5x10 | 12 |
| 45 | 24x3x10 | 4 | 150 | 24x3.5x10 | 12 |
| 50 | 20x3x10 | 5 | - | - | - |
product usage
Core Drilling for Thinner Stone Applications:
- Core drilling thinner applications of stone, including granite, marble, sandstone, limestone, and so on.
- Premium grade core bits that deliver fast drilling speed and extend product life.
- Use application with core drilling machines and hand drills.
- Production strictly according to customer requirements.
- Size could be customized.
