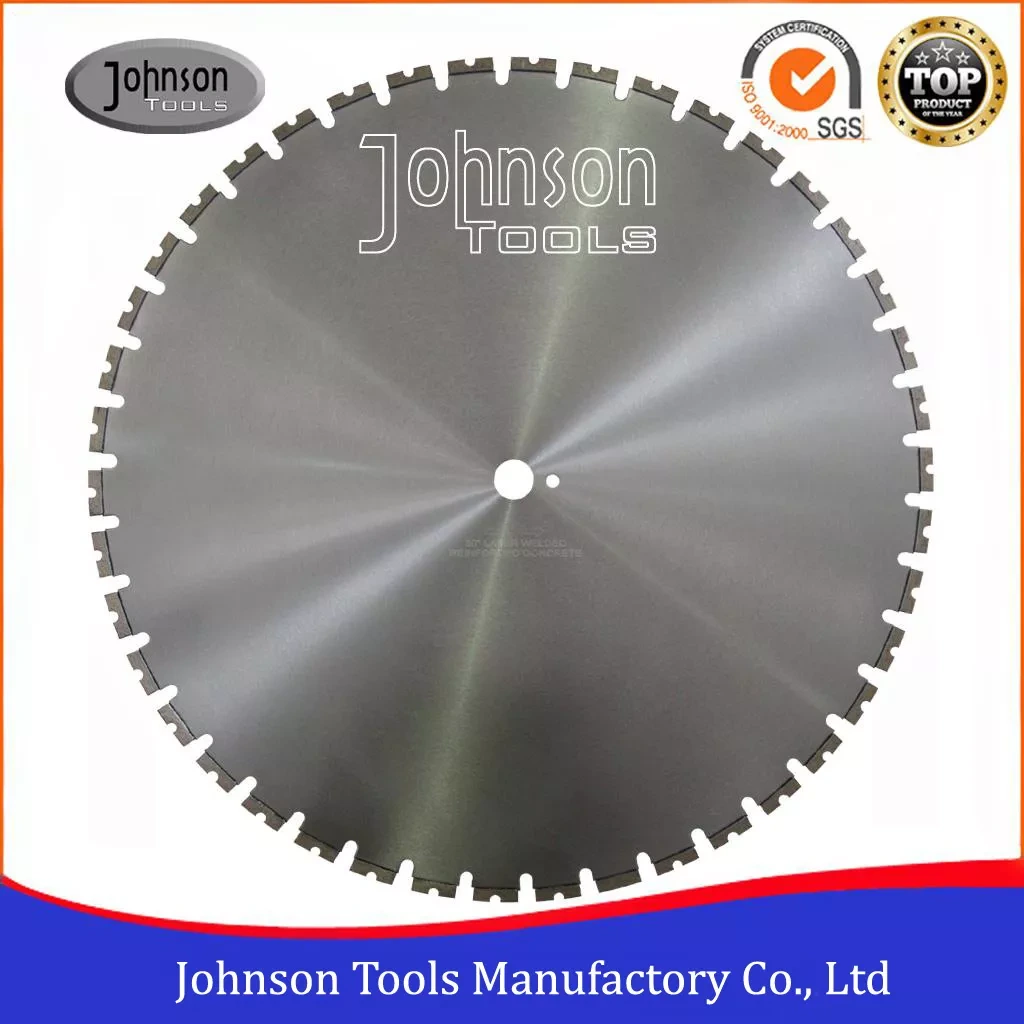

760mm Reinforced Concrete Electric Wall Saw Blades
760mm Reinforced Concrete Electric Wall Saw Blades
1. Usage
Diamond saw blades have two cutting types, one is dry cutting without coolant, the other one is wet cutting required coolant. Hydraulic wall saw blades are using laser welding technology, it could do dry cutting, but wet cutting will be better. Because during the cutting process is likely cause the blade heat and segments off from blade. Water cooling make the saw blade easier chip removal, reduce the heat and no losing segment, increasing the sharpness.
2. Power
At present, there are 25KW, 35KW, 45KW powers hydraulic wall saw in the market. 25kW equipment usually installed 600-1200mm saw blade, 35KW equipment typically installed 800-1600mm saw blade, 45KW equipment typically installed 1000-2200mm blades. 35KW Wall Saw is common machine in the market, installation of different diameter blades use different stalls, rotation speed will be different, usually 800mm blade speed is 1400rpm, 1200mm saw blade speed 900rpm, 1600mm blade speed of 600rpm. hydraulic wall saw cutting machine has high power and cutting efficiency compared with the conventional motor.
Spec.
1. Diameter:760mm/30"
2. Segment thickness:4.8/5mm
3. Segment height:10/12mm
4. Inner hole:25.4mm, 50mm, 60mm, 80mm or as your request
OD(mm) | Teeth Specification | Hole(mm) | |||
Length (mm) | Thickness (mm) | Height (mm) | Number | ||
760 | 40 | 4.8/5 | 10 | 46 | 25.4/60 |
760 | 40 | 4.8/5 | 12 | 46 | 25.4/60 |
Packing
1. 5pcs packed per plywood, and size is 79x79x5cm.
2. Net weight:13-14kg per piece.
3. Gross weight is around 70-75kg per plywood. Around 350-400kg need to pack in one pallet.
Shipment
1. 1-5pcs 760mm diamond blades, suggest to send by express.
2. 5-8pcs 760mm diamond blades, suggest to send by air.
3. More than 8pcs 760mm diamond blades, suggest to send by sea.
Tag: Crack chasing diamond blades Diamond grinding wheels for concrete diamond grinding head Diamond polishing pad for concrete
