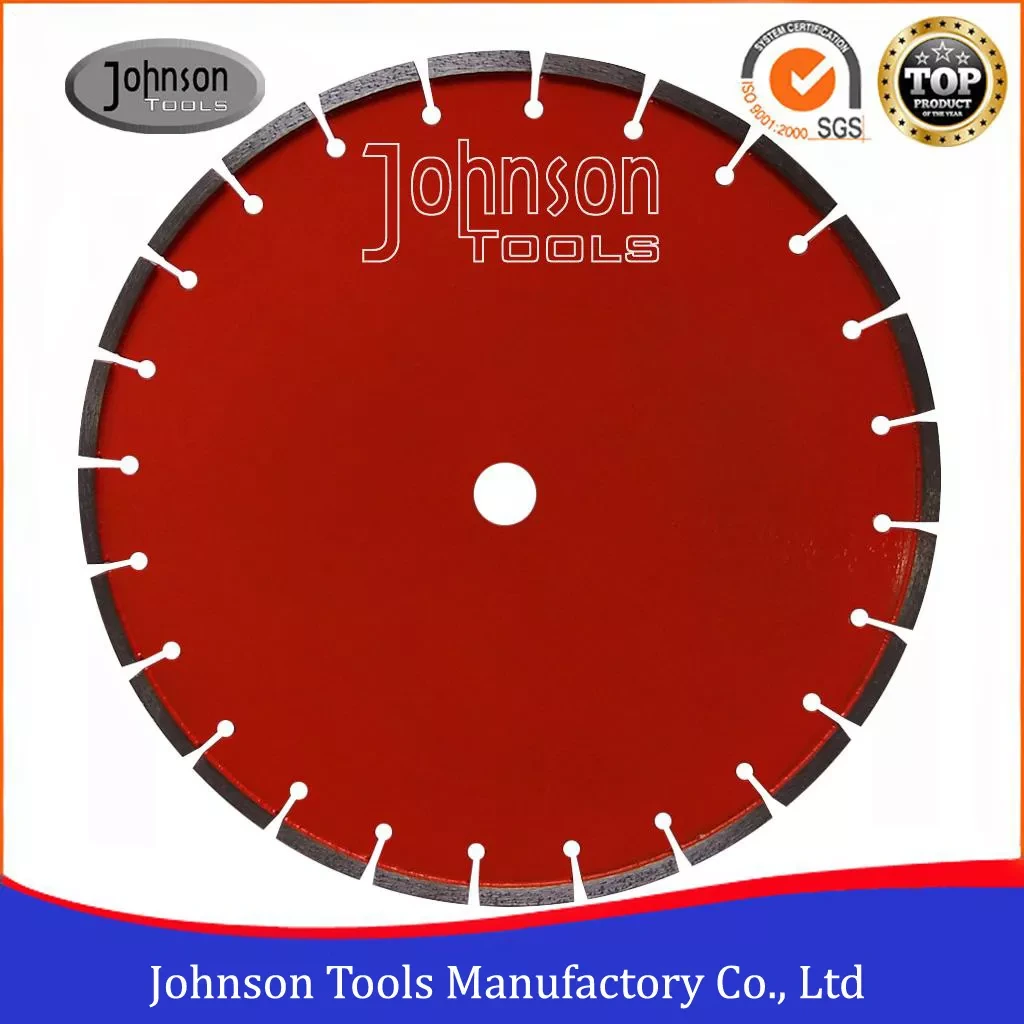

Johnson Tools Laser welded 14-18 Looping Diamond Saw Blades for Concrete and Asphalt Cutting Disc 1

Johnson Tools Laser welded 14-18 Looping Diamond Saw Blades for Concrete and Asphalt Cutting Disc 2

Johnson Tools Laser welded 14-18 Looping Diamond Saw Blades for Concrete and Asphalt Cutting Disc 3

Johnson Tools Laser welded 14-18 Looping Diamond Saw Blades for Concrete and Asphalt Cutting Disc 4

Johnson Tools Laser welded 14-18 Looping Diamond Saw Blades for Concrete and Asphalt Cutting Disc 5

Johnson Tools Laser welded 14-18" Looping Diamond Saw Blades for Concrete and Asphalt Cutting Disc

Laser-welded Looping diamond blades or loop line diamond blades have been produced to cut different sizes of wide slots in asphalt or tarmac, they are often used for the installation of detector loops in factory floors and traffic light cables. These loop line diamond blades are available in standard sizes of 6mm, 8mm, 10mm, 12mm, and 16mm widths and with an application of concrete. Or other width upon your request, please call with your exact requirements.

Features

1. Used for random crack saws.

2. Providing straight cutting and reducing vibrations for trouble-free operation.

3. 100% laser welding for less dropping.

4. Thicker than normal steel cores for improved tracking.

5. Designing for random crack repair and restoration.

6. Cutting expansion joints in fresh concrete or for loop-line traffic light detector systems.

7. Dry or wet cutting.

Spec.

1. Diameter: 350mm-450mm

2. Segment length:40mm

3. Segment Width:6-14mm or as your request.

4. Segment height:10mm, 12mm, 15mm.

5. Inner hole: 22.23mm, 25.4mm, 50mm or as your request

Inquiry

Write a Review

Get In Touch With Us

PRODUCT ADVANTAGES

Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries.

Single-Pass Efficiency:

Standard blades are too thin for wire installation. Our Loop Blade cuts a 6mm to 12mm wide trench in one go, significantly reducing cutting time and labor costs for signal and barrier installations.

Laser Welded Durability:

Road cutting generates high heat. We use advanced Laser Welding to fuse the wide segments to the heavy-duty steel core, ensuring they remain secure even when cutting through abrasive asphalt or hard reinforced concrete.

Asphalt & Concrete Ready:

The bond matrix is engineered to handle mixed road materials. It is hard enough to resist asphalt abrasion (often with Drop/Undercut Protection) yet aggressive enough to cut through cured concrete.

Stable Core:

The thick steel core is tensioned to support the wide segments, preventing wobbling and ensuring a consistent groove width for the sealant and wire.

PRODUCT parameter

Inch	Diameter (mm)	Teeth length (mm)	Teeth width (mm)	Teeth height (mm)	Teeth number (nos)
12"	300	40	6/8/10/12/14	10/12/15	20
14"	350	40	6/8/10/12/14	10/12/15	24
16"	400	40	6/8/10/12/14	10/12/15	28
18"	450	40	6/8/10/12/14	10/12/15	32

product usage

Versatile Diamond Saw Blade:

Used for Random Groove Saws
Provides Straight Cutting and Reduces Vibration for Trouble-Free Operation
Laser Welded or Silver Soldered,Depending on Segment andSteel Disc Thickness

Noteworthy Features:

Laser welding diamond saw blade is our advantage product

Usually designed for asphalt, asphalt overlay, and other abrasives material cutting with high efficiency

"Laser welding for diamond saw blades offers high precision, reliable strength, non-destructive welding, energy efficiency, and fine control, optimizing production processes and extending blade lifespan."

Long lifespan and consistent performance.

High cutting efficiency, reducing energy consumption.

More detailed process

CUSTOMIZABLE OPTIONS:

With flexibility to meet your specific requirements, we offer other dimensions of marble cutting saws based on your requests.

CE CERTIFICATION

CE certification is a crucial indicator of product quality and safety in the European market. Our diamond drill bits not only meet the requirements for CE certification but also provide reliable assurance to users based on compliance with European market standards.

These certifications not only validate our quality management system but also represent the trust and endorsement of customers in their choice. We will continue to strive for ongoing improvements in product quality to meet the demand for laser saw blades of high standards and quality from our customers.

Q1: What is a "Loop" blade used for?

A: It is used to cut wide slots (grooves) in roads to bury electrical wires for "Induction Loops" – the sensors that detect cars at traffic lights and parking barriers. It cuts a wide path in one pass so the wire fits easily.

Q2: Can I use this for normal cutting?

A: You can, but it is not efficient. It removes 3-4 times more material than a standard blade, so it cuts slower and requires more power. Only use it when you need a wide groove (6mm+).

Q3: Do I need water?

A: Yes. Cutting a wide groove generates a lot of friction and dust. Wet cutting is essential to cool the wide segments, flush out the heavy slurry, and keep the cut clean for the wire installation.

Q4: Does it fit my floor saw?

A: These blades typically come with a standard 25.4mm (1 inch) arbor with a drive pin hole, fitting most standard walk-behind floor saws (Husqvarna, Stihl, etc.). Ensure your saw has enough horsepower (13HP+) to drive a wide blade.
